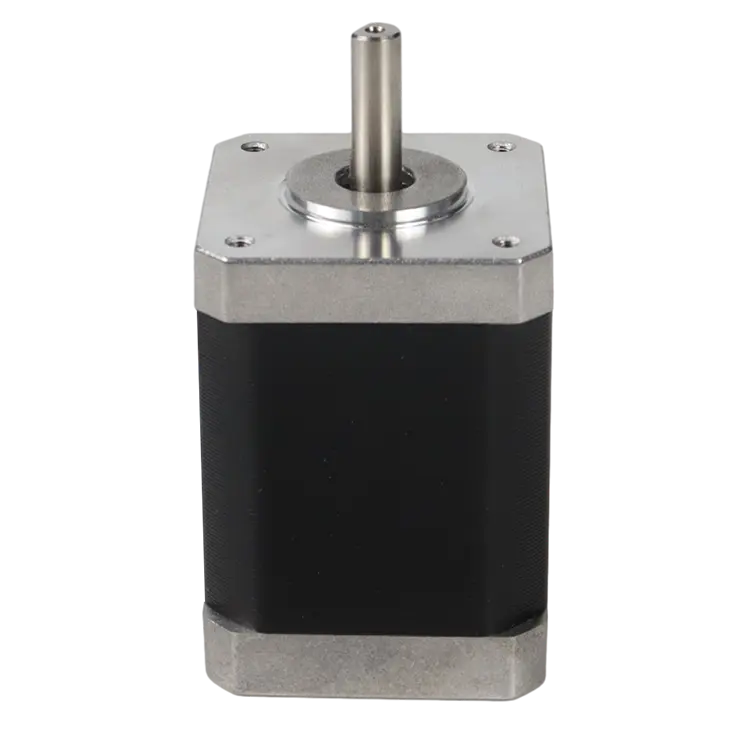

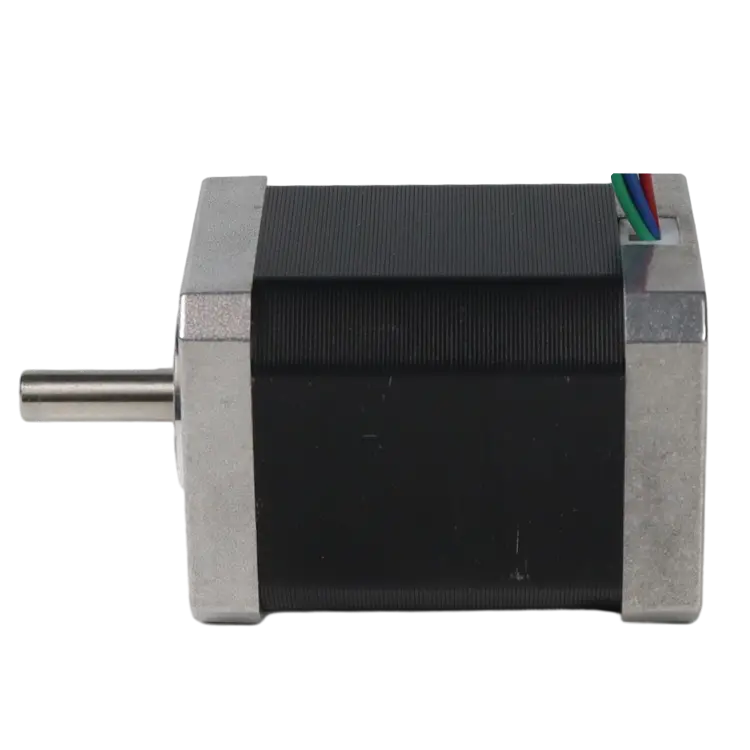

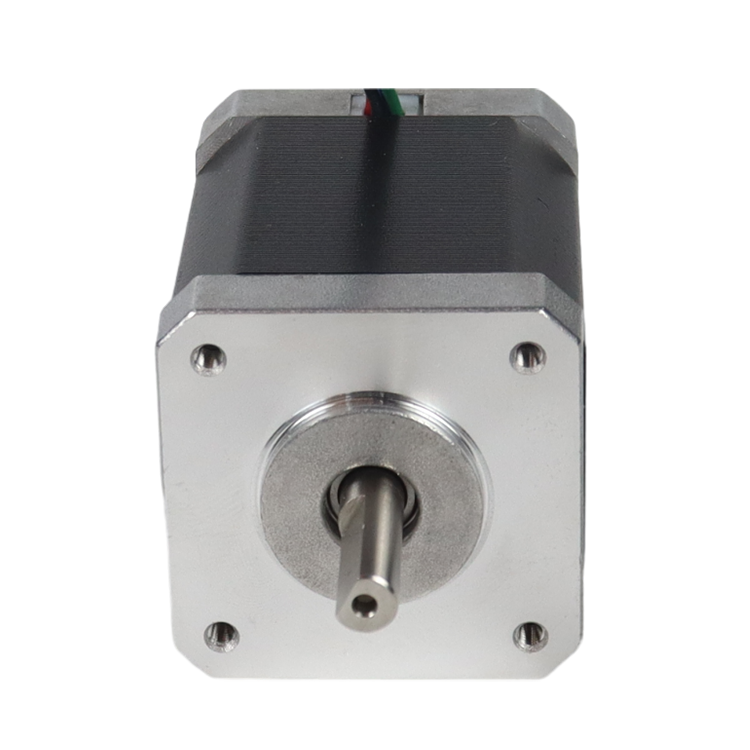

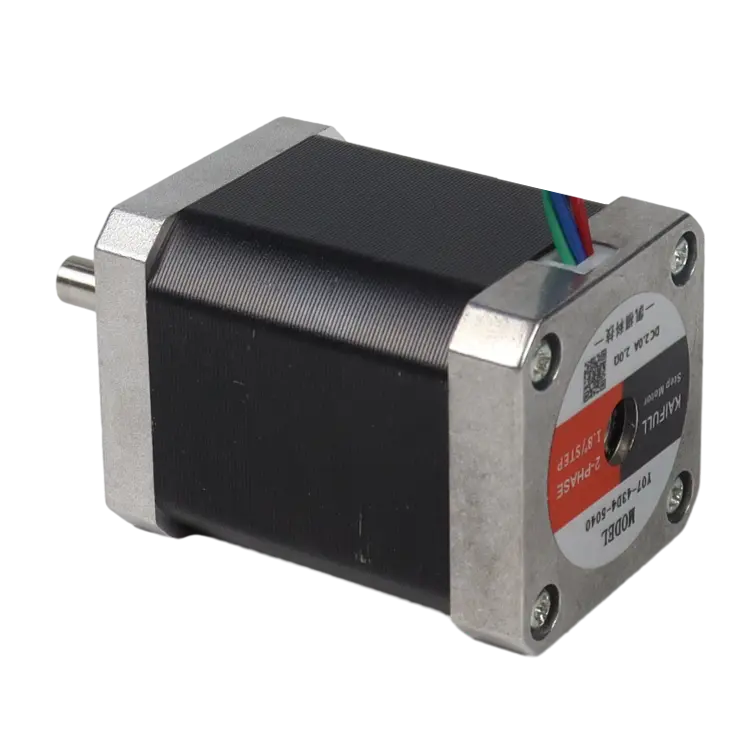

KST-35D17-ZK-0001 1.8° Stepper Motor with 0.15N Minimum Thrust, 1A Rated Current, 4 Leads, 35mm Frame Size

The KST-35D17-ZK-0001 is a compact and efficient stepper motor designed for precise motion control in small-scale applications. Featuring a step angle of 1.8° and a minimum thrust of 0.15N, this motor is ideal for use in robotics, automation, and other space-constrained systems.

Operating with a rated current of 1A, the motor provides smooth and reliable performance. The resistance is 3.1Ω, and the inductance is 3.3mH, ensuring efficient energy use and accurate motion control. With a rotor inertia of 18g·cm², it offers low inertia for quick response in precise movements.

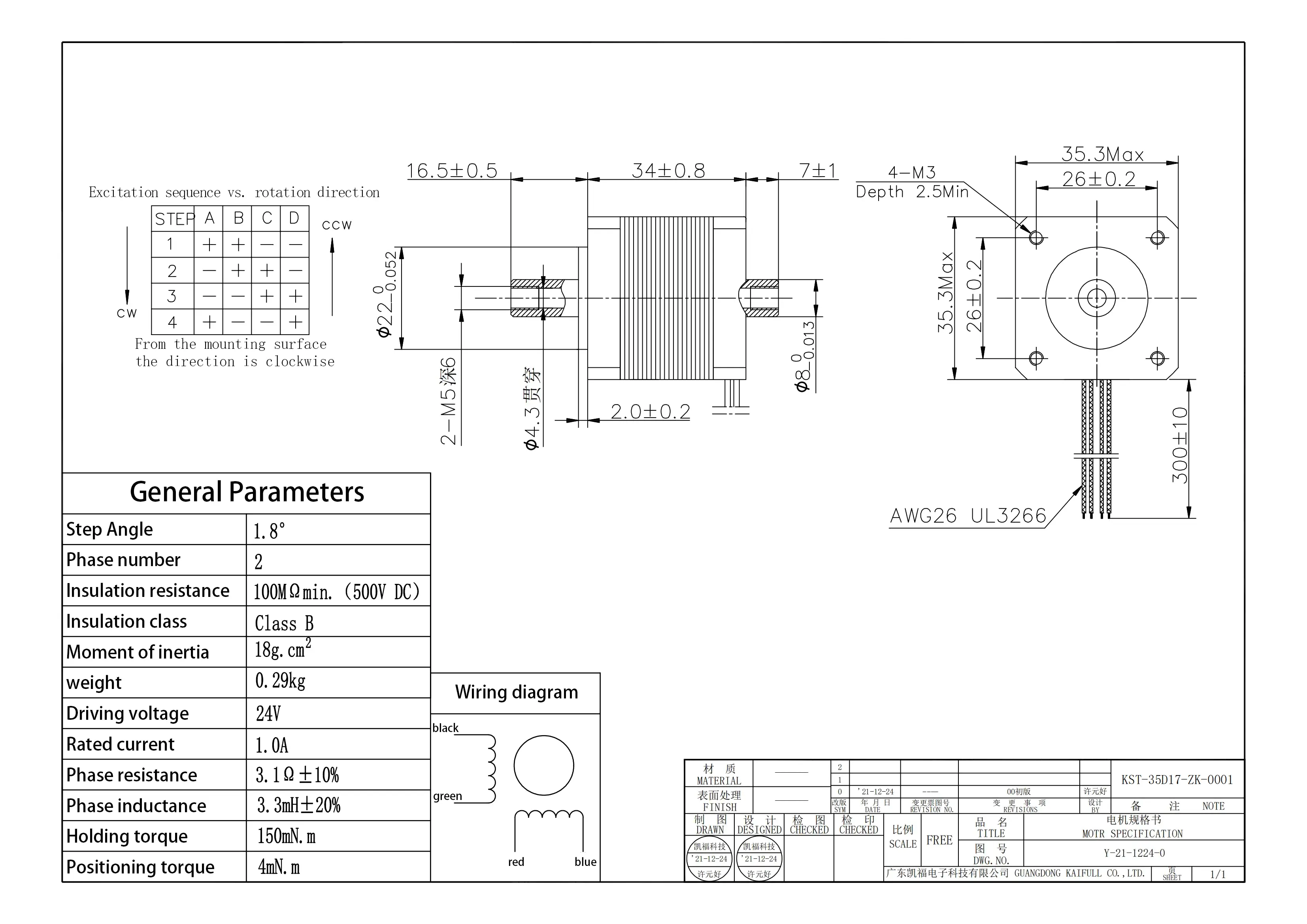

This motor features four leads, making it compatible with a variety of driver configurations. With a shaft diameter of 8mm and axis length of 15.5mm, it is designed to fit a variety of mechanical assemblies. The overall motor length is 34mm, and the motor weighs just 290g, making it ideal for applications where space and weight are critical factors.

Built to last with durable materials, the KST-35D17-ZK-0001 ensures long-term reliability and is perfect for a wide range of motion control tasks.
