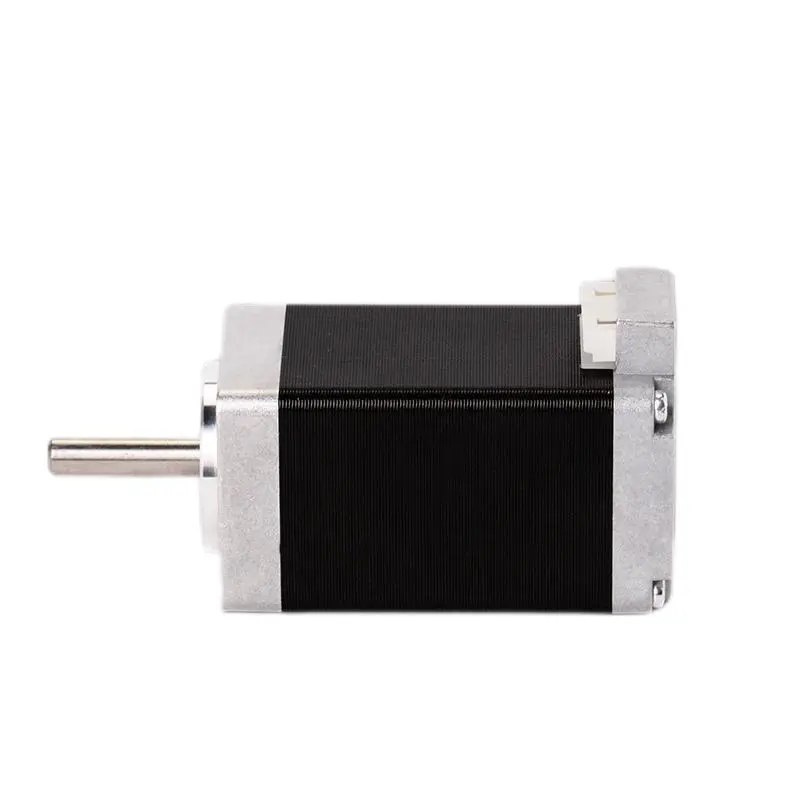

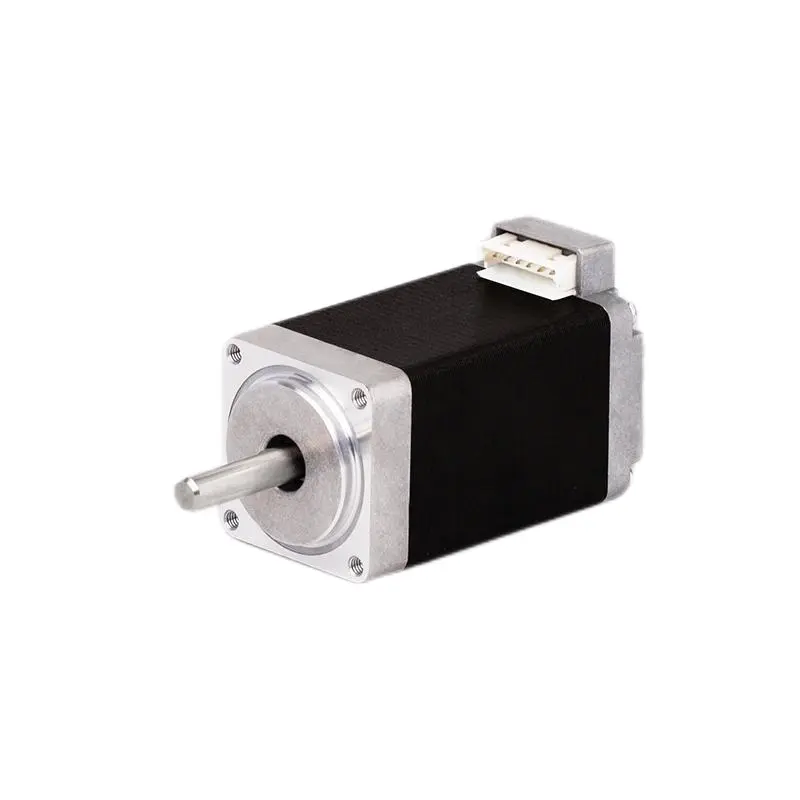

KST-28B37-0001 5-Phase Stepper Motor | NEMA 11 28mm, 0.72°, 1.2A, 0.09N.m
KST-28B37-0001 5-Phase Stepper Motor | NEMA 11 28mm, 0.72°, 1.2A, 0.09N.m
KST-28B37-0001 5-Phase Stepper Motor | NEMA 11 28mm, 0.72°, 1.2A, 0.09N.m

KST-28B37-0001 NEMA 11 28mm 5-Phase Stepper Motor – 0.72° Step Angle, 1.2A, 0.09N.m Holding Torque

High-precision KST-28B37-0001 NEMA 11 5-phase stepper motor with 0.72° step angle, 1.2A current, and 0.09N.m torque. Ideal for compact, accurate motion control systems.

    Contact us Download
    Detail description
    Technical parameter
    Product size

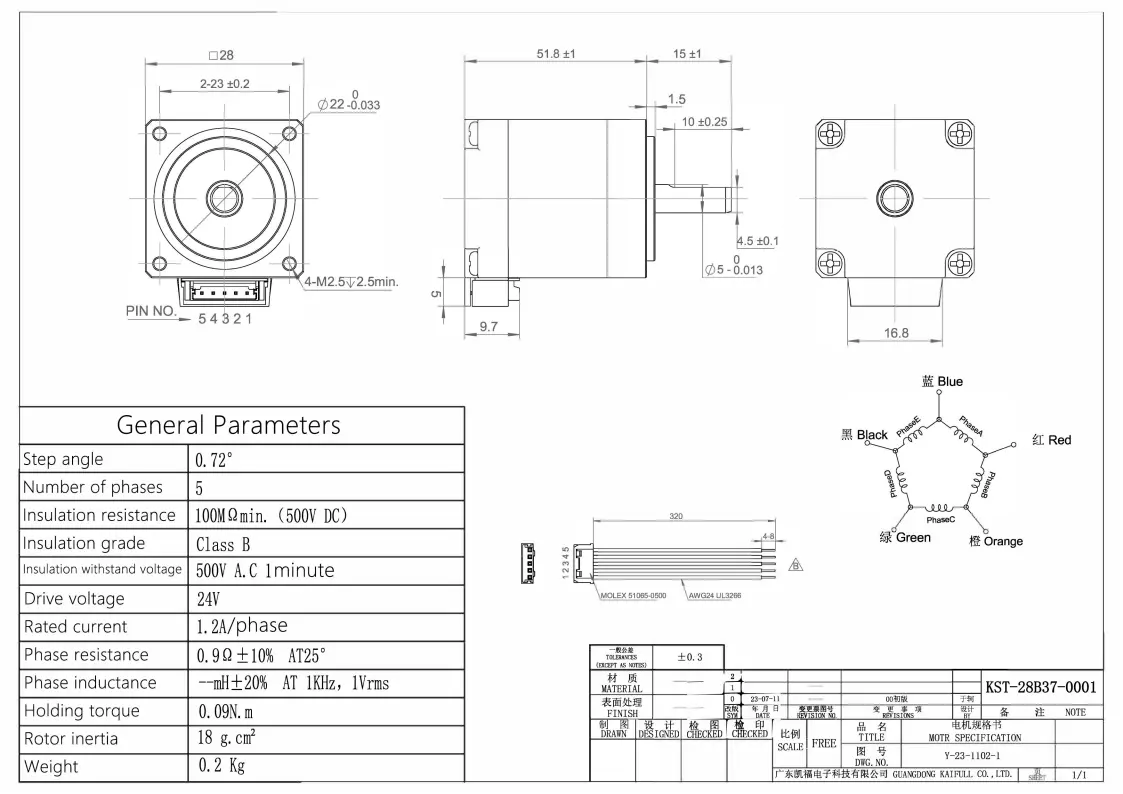

    drawing

    The KST-28B37-0001 is a high-performance 5-phase stepper motor with a 28mm frame size (NEMA 11), designed for applications that demand accuracy, smooth motion, and compact size. Featuring a 0.72° step angle, this motor delivers ultra-precise motion control, making it ideal for automation, robotics, semiconductor equipment, and medical instrumentation.

    It provides a holding torque of 0.09N.m and operates at a rated current of 1.2A. The motor's rotor inertia of 18 g·cm² supports consistent acceleration in applications requiring stable response. Its shaft diameter of 5mm and shaft length of 15mm ensure straightforward mechanical integration. With a motor length of 51.8mm and weight of 200g, it balances power and compactness perfectly.

    ●Motor configuration and performance parameters

    Frame size/mm

    28MM

    NEMA

    11

    Model

    KST-28B37-0001

    Step Angle

    0.72°

    Rated current/A

    1.2

    Maintain torque/N.m

    0.09

    Rotor inertia/g.cm²

    18

    Shaft diameter

    5

    Axis length

    15

    Motor length/mm

    51.8

    Mass/g

    200
    KST-28B37-0001_01
