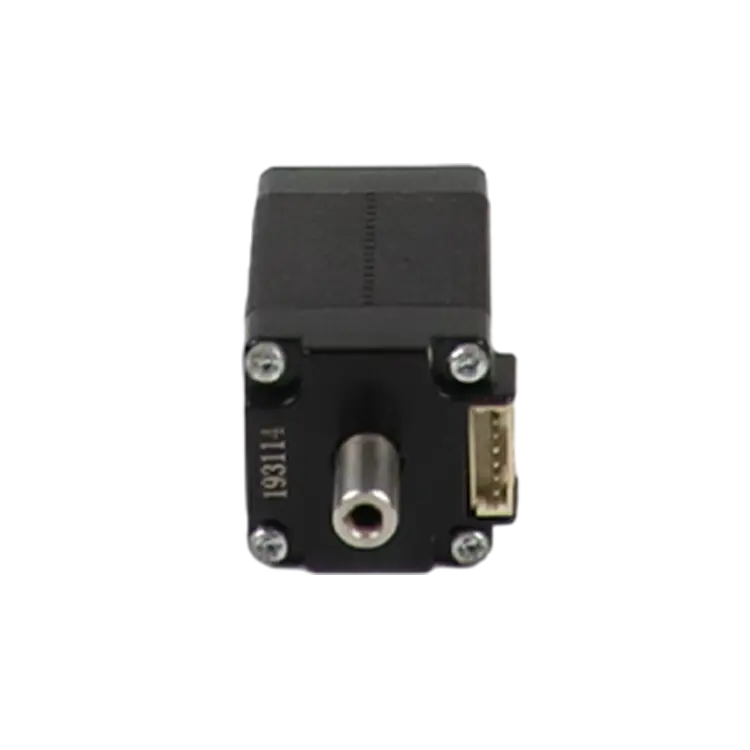

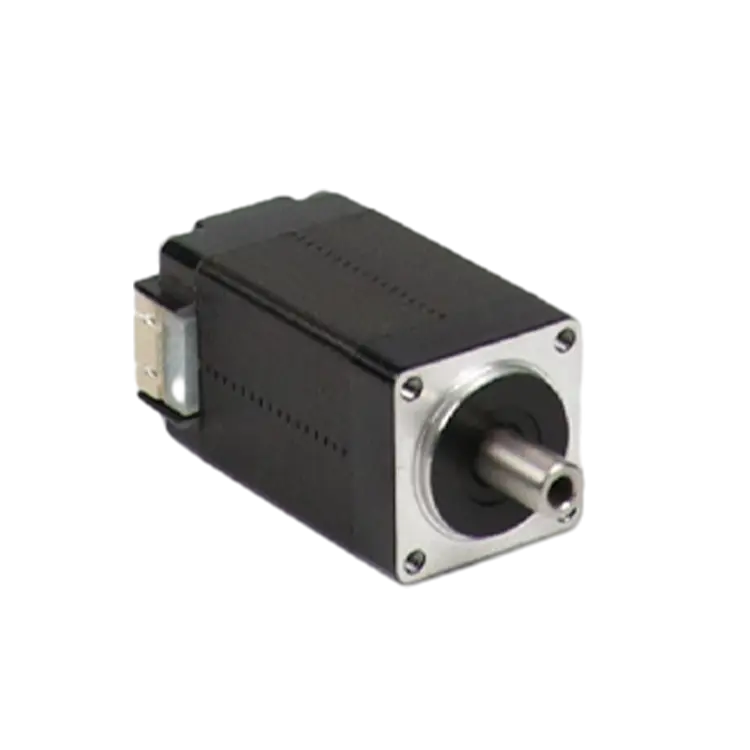

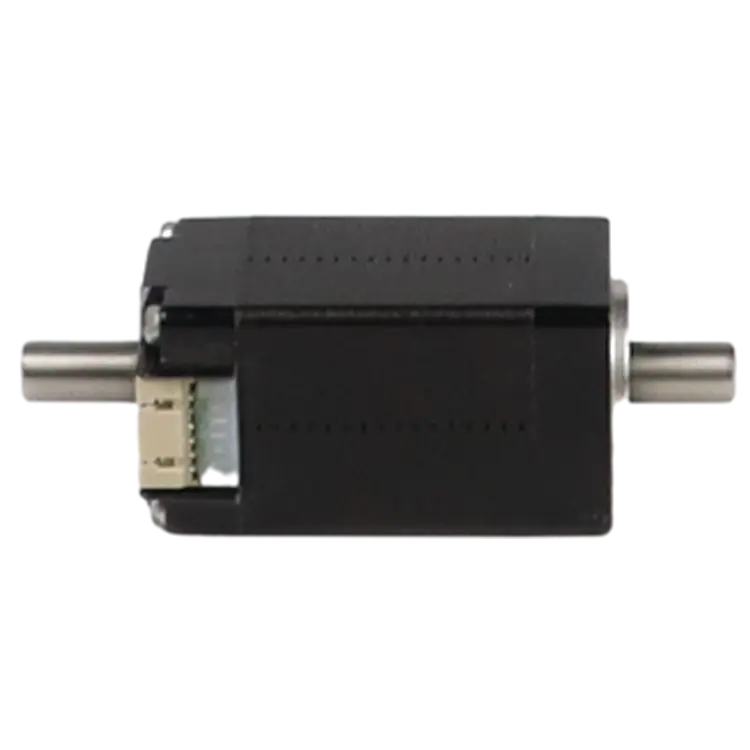

KST-20D25-ZK-0002 1.8° Stepper Motor, 0.6A Rated Current, 3mH Inductance, 80g, 22mN.m Holding Torque, 24V DC

The KST-20D25-ZK-0002 is a compact and efficient stepper motor that provides precise movement control for small-scale automation and robotics applications. With a step angle of 1.8°, it ensures high accuracy and reliable performance.

This motor operates on a 24V DC rated voltage and a rated current of 0.6A, offering energy-efficient motion control. The resistance is 9Ω, and the inductance is 3mH, providing smooth and stable operation for various light-duty tasks. It has an insulation resistance of 100MΩ, ensuring safe and reliable operation in various environments.

Weighing only 80g, the KST-20D25-ZK-0002 has a holding torque of 22mN·m and a braking torque of 4mN·m, making it ideal for applications where low torque and precision are required. Its moment of inertia is 3g·cm², enabling fast response and accurate positioning.

This motor is well-suited for compact machinery, automation systems, and other applications that require precise, reliable movement in small spaces.
