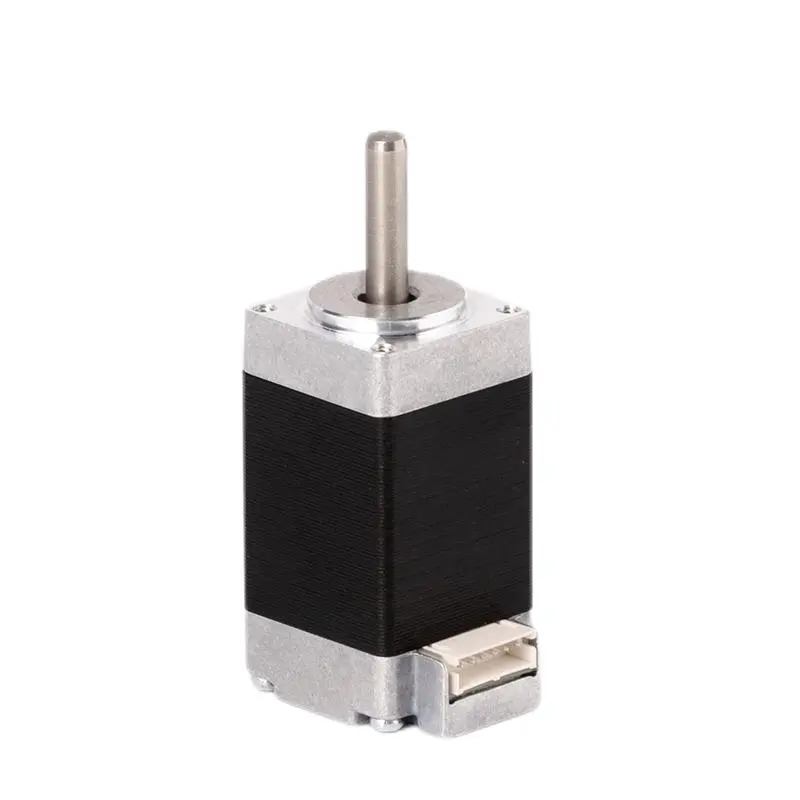

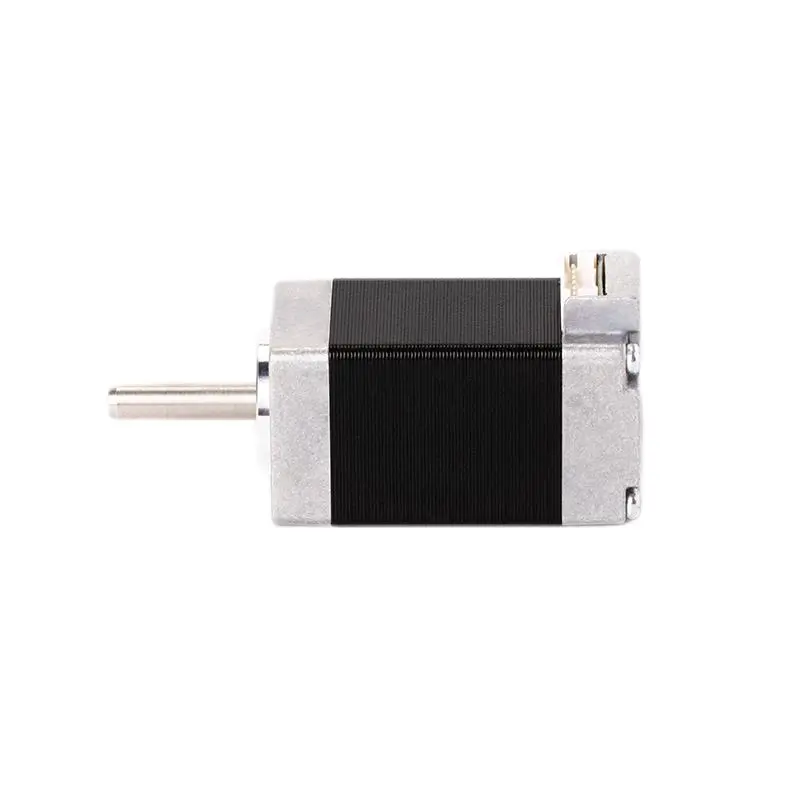

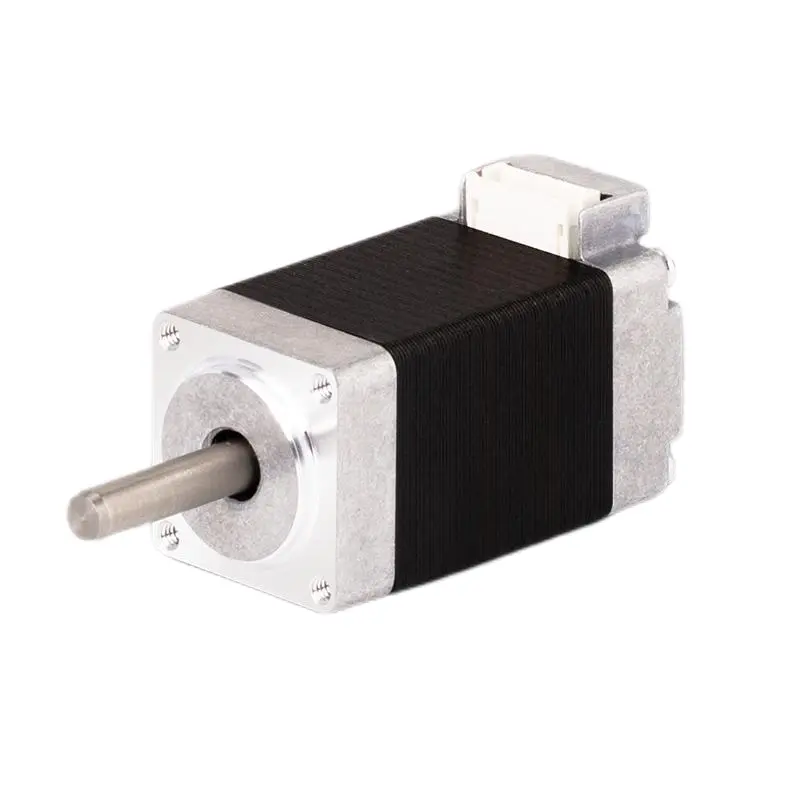

KST-20D25-0001 1.8° Stepper Motor, 0.6A Rated Current, 3.6mH Inductance, 70g, 0.022N.m Holding Torque, 24V DC

The KST-20D25-0001 is a compact and lightweight stepper motor designed for precision applications in confined spaces. With a step angle of 1.8°, this motor provides precise positioning and is suitable for small-scale automation systems, precision machinery, and robotics.

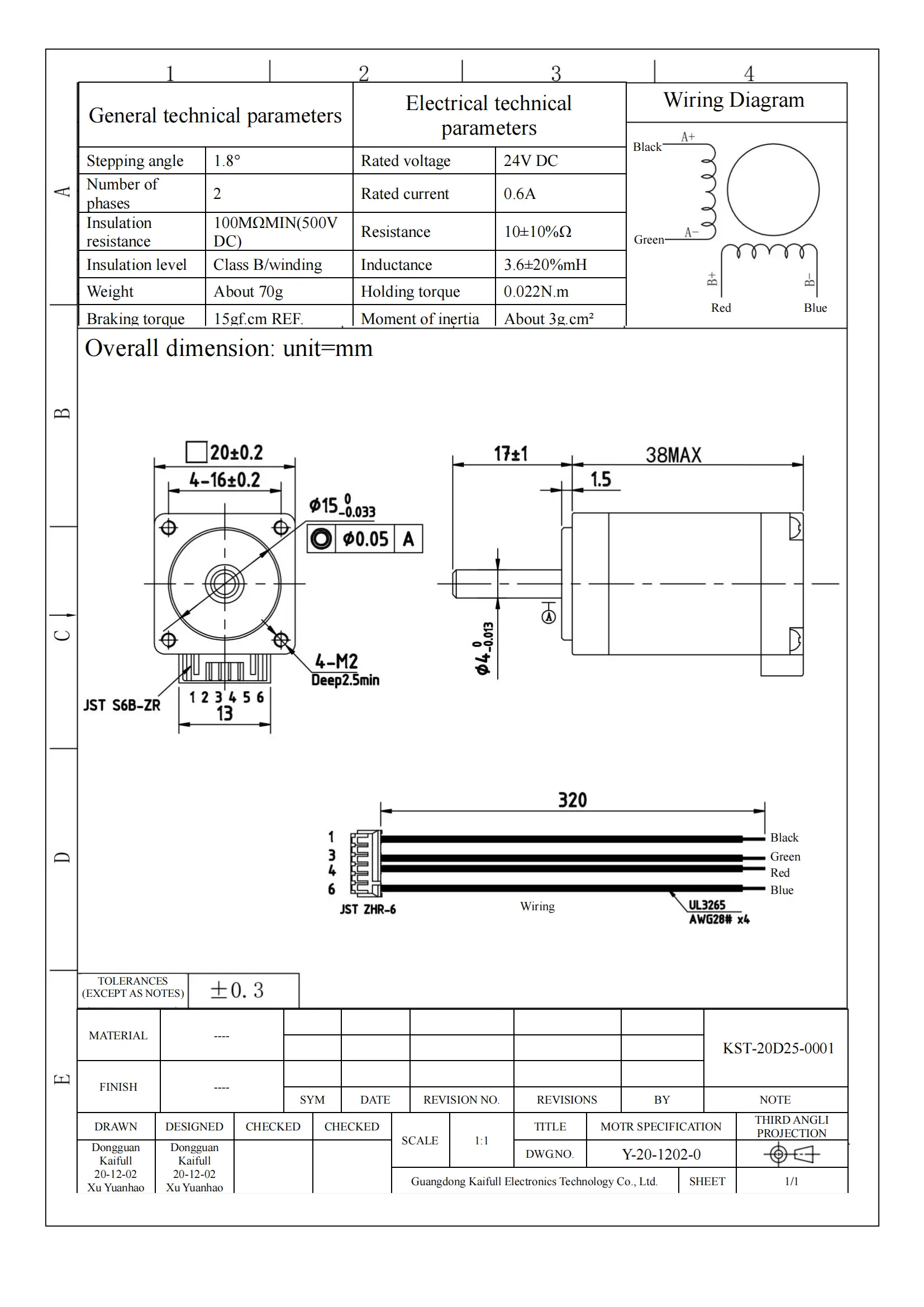

Operating at a rated voltage of 24V DC and a rated current of 0.6A, the motor is energy-efficient while delivering reliable performance. The resistance is 10Ω, and the inductance is 3.6mH, ensuring smooth operation and consistent output. The insulation resistance of 100MΩ ensures durability and longevity under different working conditions.

Despite its small size, with a weight of just 70g, this motor offers a holding torque of 0.022N·m and a braking torque of 15gf·cm, making it a perfect choice for low-load applications requiring light but precise movement. The moment of inertia is 3g·cm², contributing to quick and responsive motion control.

This stepper motor is ideal for space-constrained applications that require both light weight and high accuracy, ensuring optimal performance in a variety of low-load setups.
