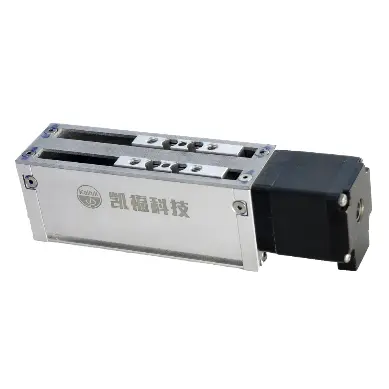

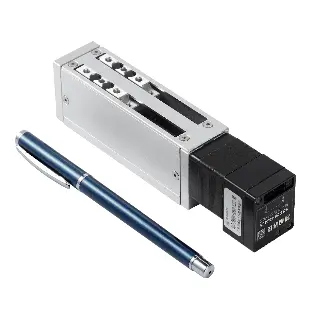

KF28D3011-02GZ-50 Precision Sliding Table Module for Advanced Automation

The KF28D3011-02GZ-50 sliding table module is engineered for high-performance automation applications, delivering precision and reliability in a compact design. With a stepping angle of 1.8°, this module features a two-phase stepper motor that operates at a driving voltage of 24V DC, ensuring efficient performance across various tasks.

Designed with a rated current of 1.0A, it strikes a balance between power and efficiency, making it suitable for a range of industrial applications. The insulation resistance of 100 MΩ minimum at 500V DC enhances the durability of the module, protecting against electrical interference and ensuring long-lasting operation. The insulation class B stage indicates its capability to function effectively in varying temperature environments.

Weighing approximately 1000g, this sliding table module is robust enough to manage mechanical loads without sacrificing performance. It provides an output thrust of 20N at a speed of 10 r/s, making it ideal for applications that demand consistent force and swift movement.

The module features a step size of 0.01mm, coupled with a repeated positioning accuracy of ±0.005mm. This level of precision is crucial for tasks requiring exact movements, such as in CNC machining or robotics. Additionally, it incorporates a ball screw design with a lead of 2mm, ensuring smooth operation and high efficiency.

Optional magnetic limit sensors enhance the operational safety of the system, making it adaptable for various automation setups. The KF28D3011-02GZ-50 is a reliable choice for engineers and developers looking to integrate precise movement solutions into their projects.
