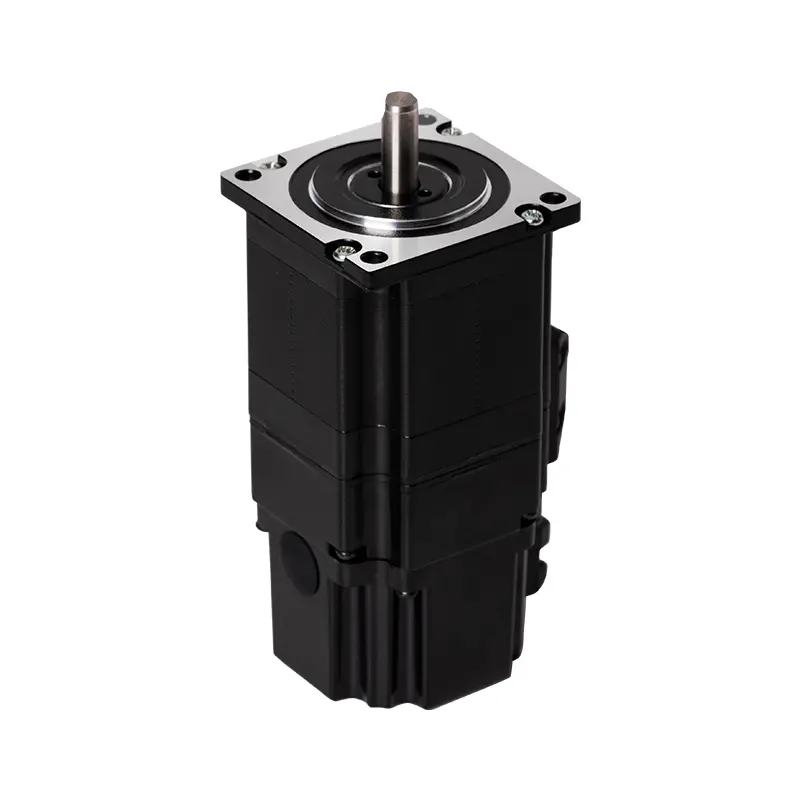

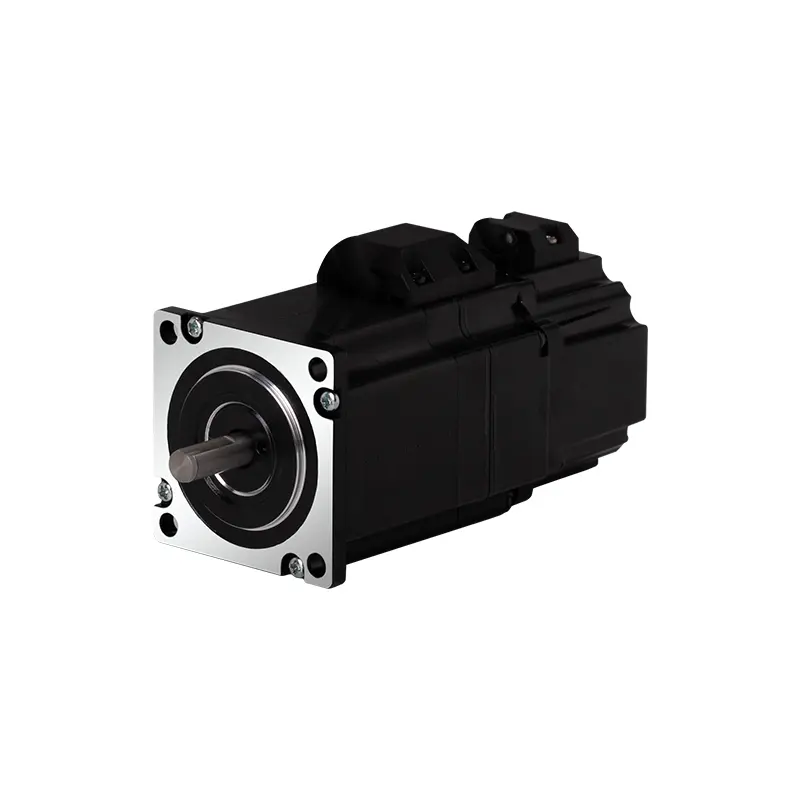

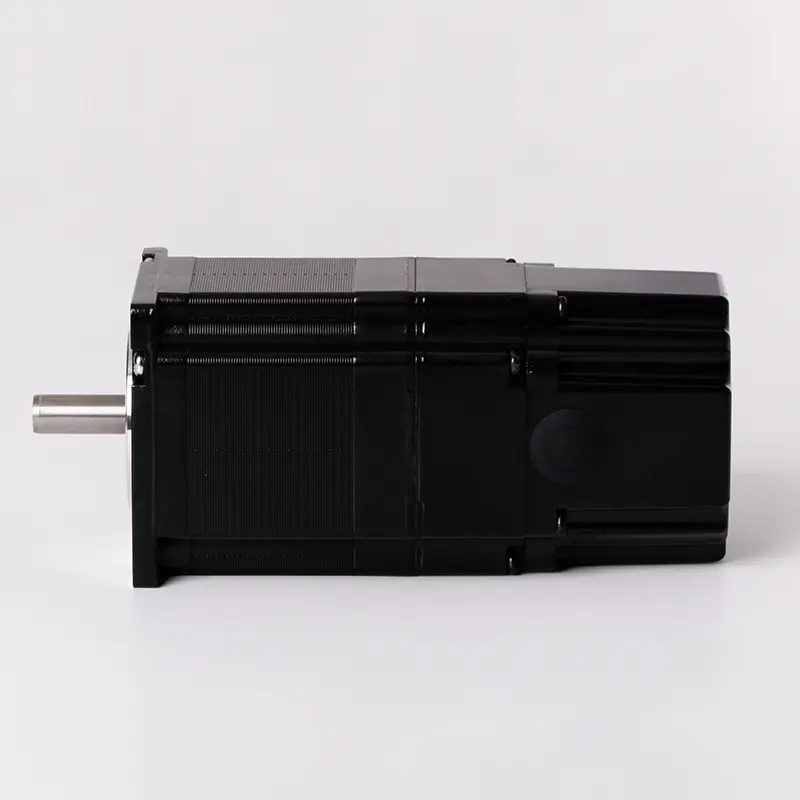

High-Torque Stepper Motor Y07-59D112-8415-35 | 57mm Frame
High-Torque Stepper Motor Y07-59D112-8415-35 | 57mm Frame
High-Torque Stepper Motor Y07-59D112-8415-35 | 57mm Frame

High-Torque Stepper Motor Y07-59D112-8415-35 | 57mm Frame, 1.8° Step Angle

Y07-59D112-8415-35 high-torque stepper motor with 1.8° step angle, 4.5A rated current, and 3.2N minimum thrust for industrial use.

    Contact us Download
    Detail description
    Technical parameter
    Product size

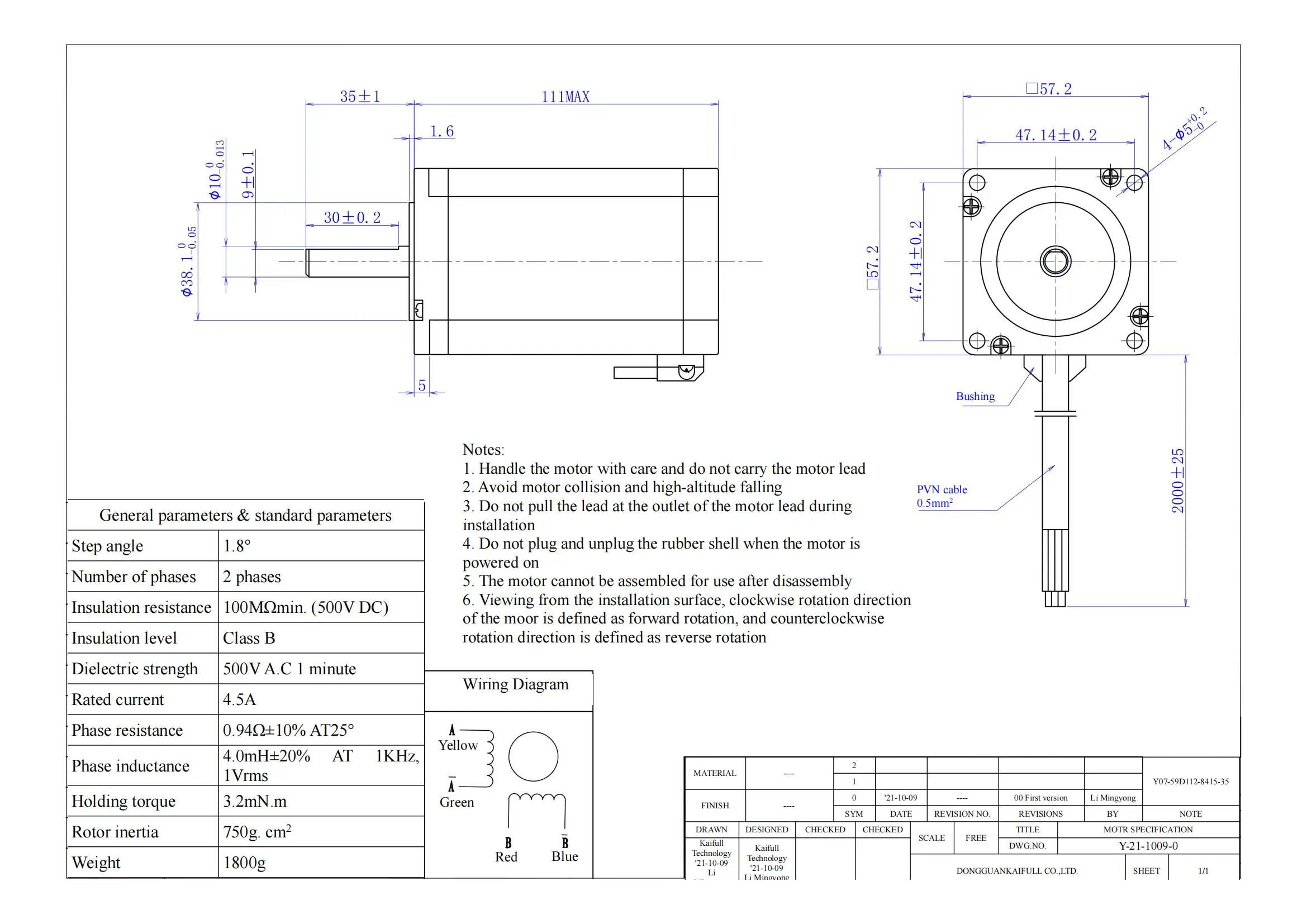

    drawing

    The Y07-59D112-8415-35 is a powerful high-torque stepper motor designed to deliver precision and reliability in demanding applications. Featuring a 1.8° step angle and a rated current of 4.5A, it ensures smooth motion and optimal performance. With a resistance of 1Ω and an inductance of 4mH, this motor is engineered for high efficiency and durability. It offers a minimum thrust of 3.2N and a rotor inertia of 750g·cm², making it suitable for heavy-duty tasks. Its robust design includes a 10mm shaft diameter and a motor length of 111.4mm, with a total weight of 1800g, ideal for industrial automation, robotics, and CNC machines.

    ●Motor configuration and performance parameters

    Frame size /mm

    57mm

    Model

    Y07-59D112-8415-35

    Step Angle

    1.8

    Rated current /A

    4.5

    Resistance /Ω

    1

    Inductance /mH

    4

    Maintain torque /N.m
    Minimum thrust N

    3.2

    Rotor inertia /g.cm²

    750

    Number of leads

    4

    Shaft diameter

    10

    Axis length

    35

    Motor length /mm

    111.4

    Mass /g

    1800

    Y07-59D112-8415-35_00
