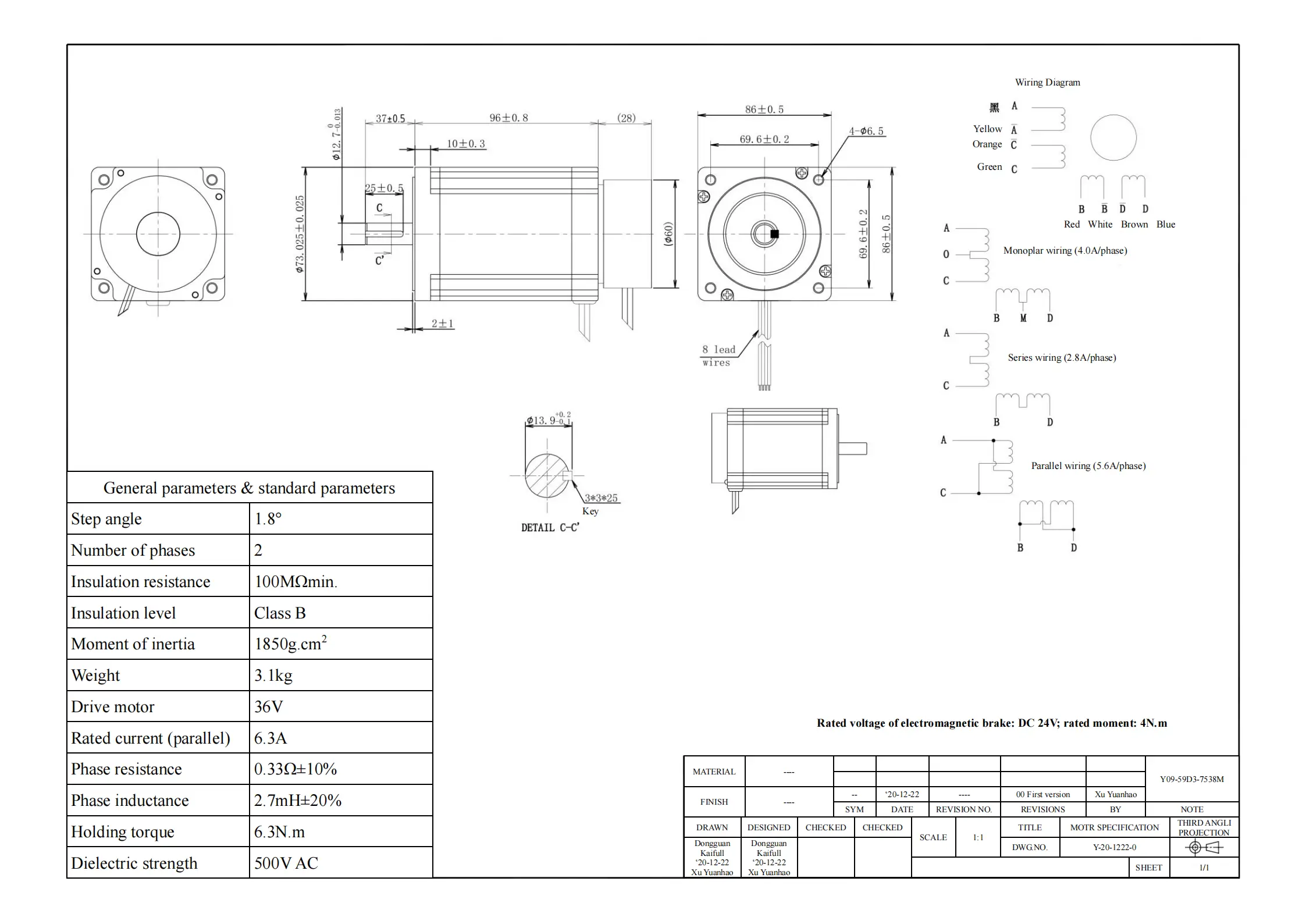

High-Torque 36V Stepper Motor Y09-59D3-7538M with 6.3N.m Holding Force

The Y09-59D3-7538M stepper motor is designed to meet high-performance industrial demands, offering robust torque and precision control for intensive applications. With a step angle of 1.8° and dual-phase configuration, this 36V DC motor achieves a strong holding torque of 6.3N.m, ideal for large-scale automation systems, CNC machinery, and equipment requiring substantial torque stability. Engineered with a rated current of 6.3A (parallel) and phase resistance of 0.33Ω ±10%, the Y09-59D3-7538M guarantees dependable operation while minimizing heat buildup.

This stepper motor features Class B insulation, ensuring protection up to 100MΩ resistance for added safety in rigorous environments. The phase inductance of 2.7mH ±20% further contributes to efficient power management, optimizing performance in extended operational cycles. Weighing approximately 3.1kg with a moment of inertia of 1850g.cm², it provides enhanced stability, essential for smooth and precise positioning in demanding applications.

Crafted for durability and precision, the Y09-59D3-7538M is a powerful solution for professionals who require reliability and high torque in complex automation projects.
