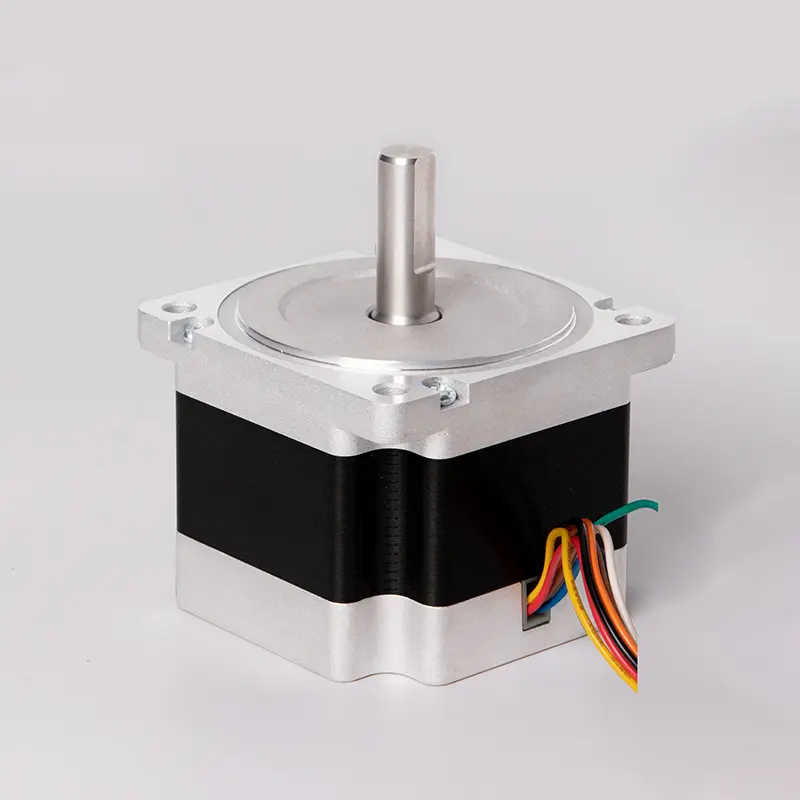

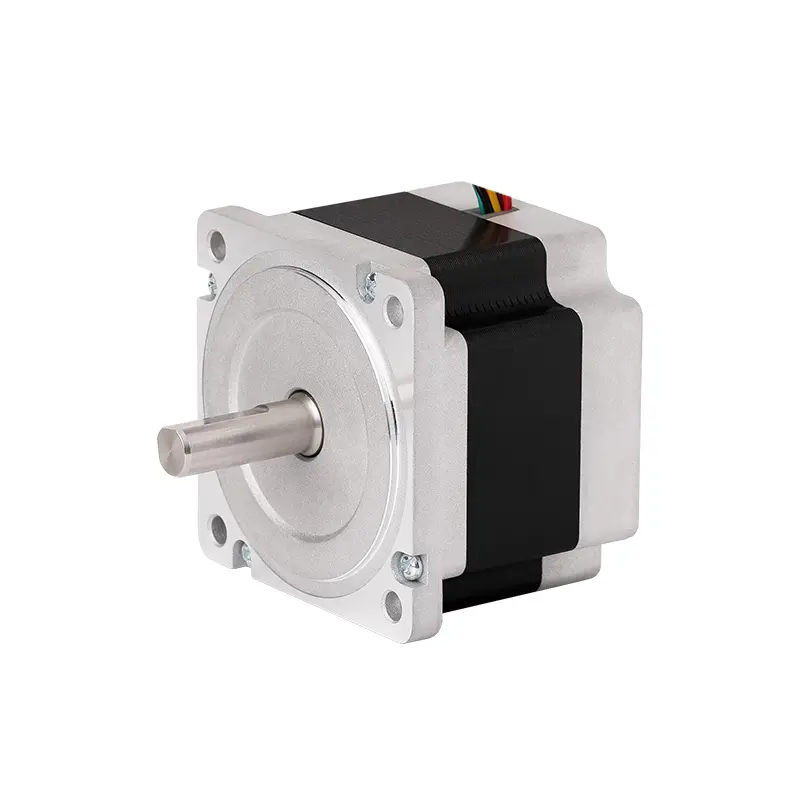

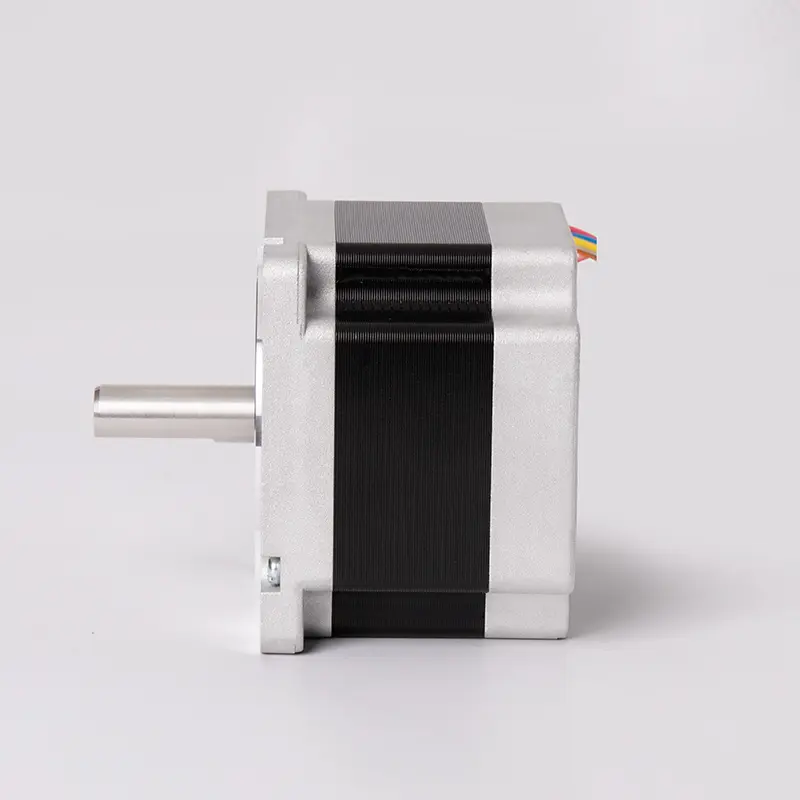

High-Torque 24V DC Stepper Motor Y09-59D3-7430 for Precision Control

The Y09-59D3-7430 stepper motor offers exceptional holding torque and stability for precision-driven applications. Featuring a 1.8° stepping angle and rated for 24V DC, this motor delivers reliable, controlled movement suitable for automation systems, CNC equipment, and robotic applications. With a robust current rating of 6.3A and a holding torque of 2.9N.m, this motor provides strong load support and precise positioning.

Equipped with Class B insulation and an insulation resistance of 100MΩ (at 500V DC), the Y09-59D3-7430 ensures safety and durability under intensive use. Its low resistance of 0.24±15%Ω and inductance of 1.7±20%mH contribute to efficient energy use and smooth operation, even in high-demand environments. Weighing approximately 1600g, the motor includes a braking torque of 1500gf.cm, allowing for secure, stable performance during rapid start-stop movements.

Designed with a moment of inertia of 1100g.cm², the Y09-59D3-7430 is an ideal choice for engineers seeking a powerful yet precise stepper motor for dynamic motion control solutions.
