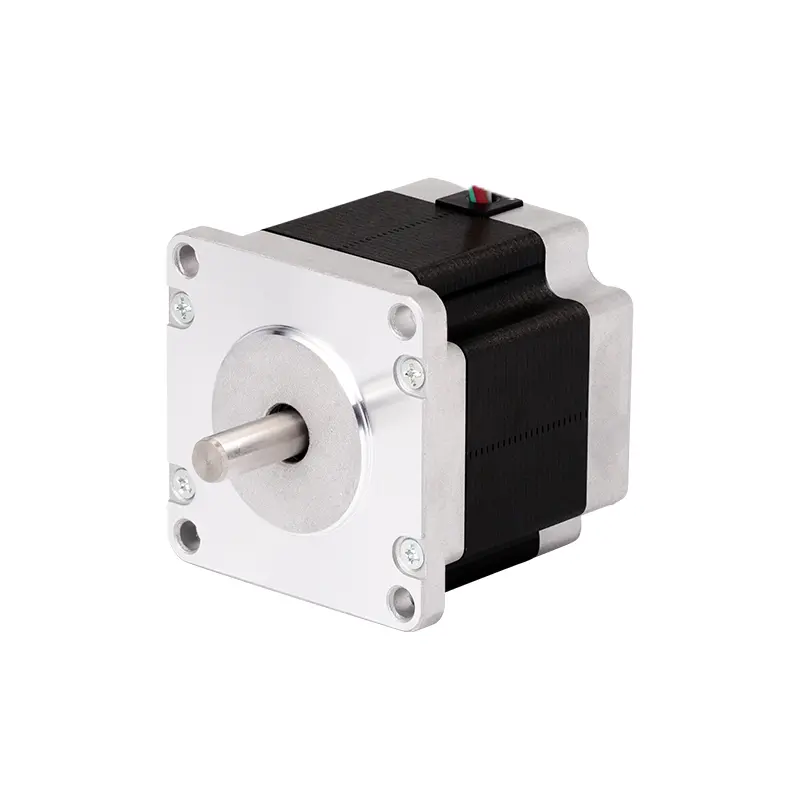

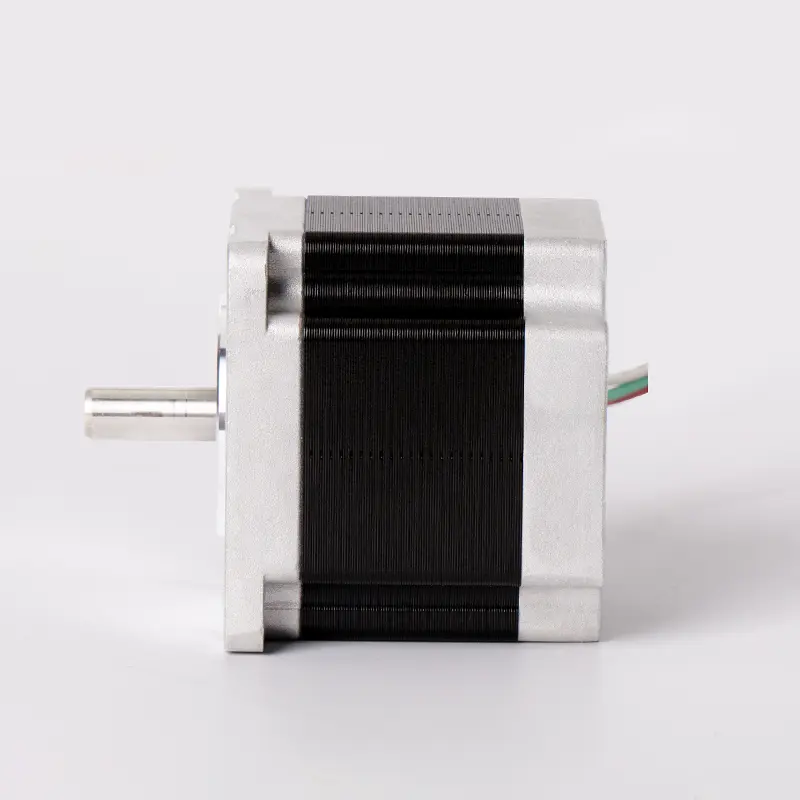

High Torque 24V DC Stepper Motor Y09-59D3-7230 for Precision Applications

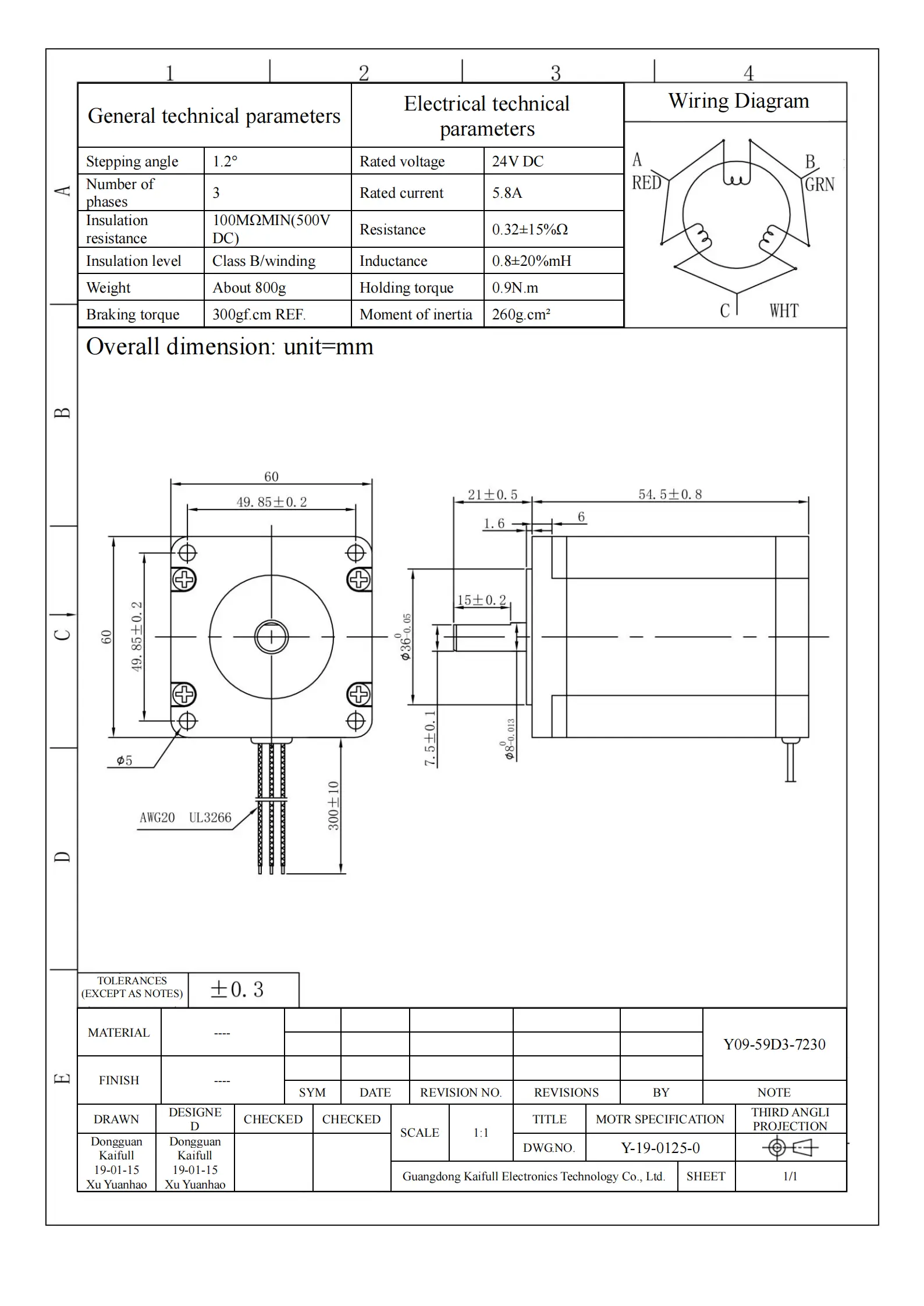

The Y09-59D3-7230 stepper motor is engineered for precision and reliability in demanding applications. With a stepping angle of 1.2° and a rated voltage of 24V DC, this motor delivers exceptional performance, making it suitable for use in automation, robotics, and various industrial applications.

This model features a rated current of 5.8A, providing a substantial holding torque of 0.9N.m. This ensures stability and control even under varying load conditions. The braking torque of 300gf.cm enhances its ability to maintain precise positioning during operation.

Designed with an impressive insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.32±15Ω, the Y09-59D3-7230 guarantees safe and reliable operation. The Class B insulation level ensures the motor can withstand thermal stresses, while the inductance rating of 0.8±20%mH allows for smooth and efficient motor performance.

Weighing approximately 800g with a moment of inertia of 260g.cm², this stepper motor is built for durability without compromising on performance. The Y09-59D3-7230 is an ideal choice for engineers and designers looking for a dependable solution for precision motion control.
