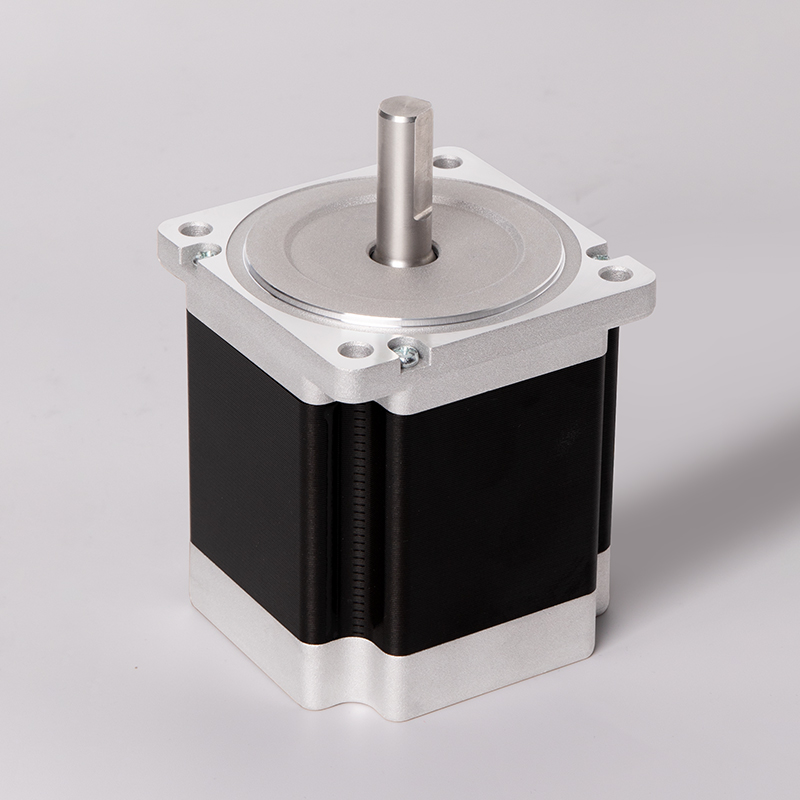

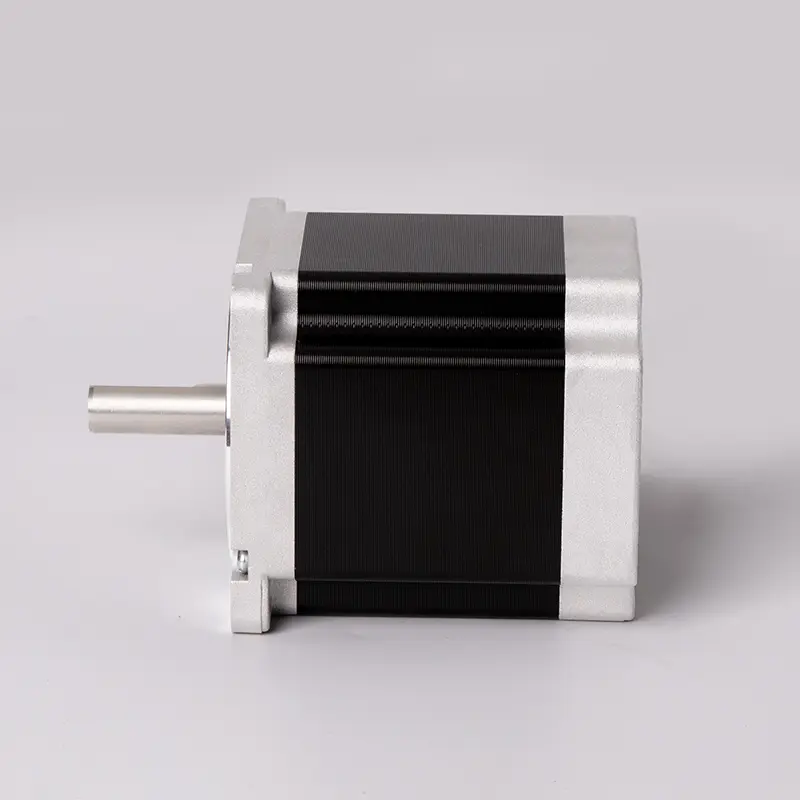

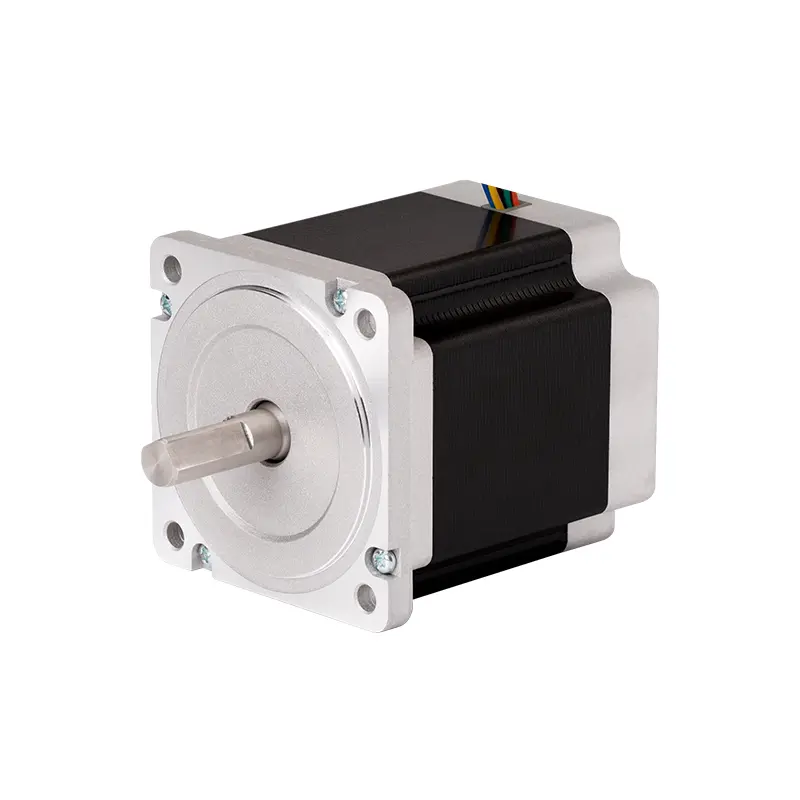

High Torque 1.8° Stepper Motor - Y09-59D3-7536

The Y09-59D3-7536 is a powerful and high-torque stepper motor designed to meet the rigorous demands of modern industrial applications. With a 1.8° stepping angle, this two-phase motor provides precise and reliable motion control, ideal for industries such as robotics, CNC machinery, and automation equipment.

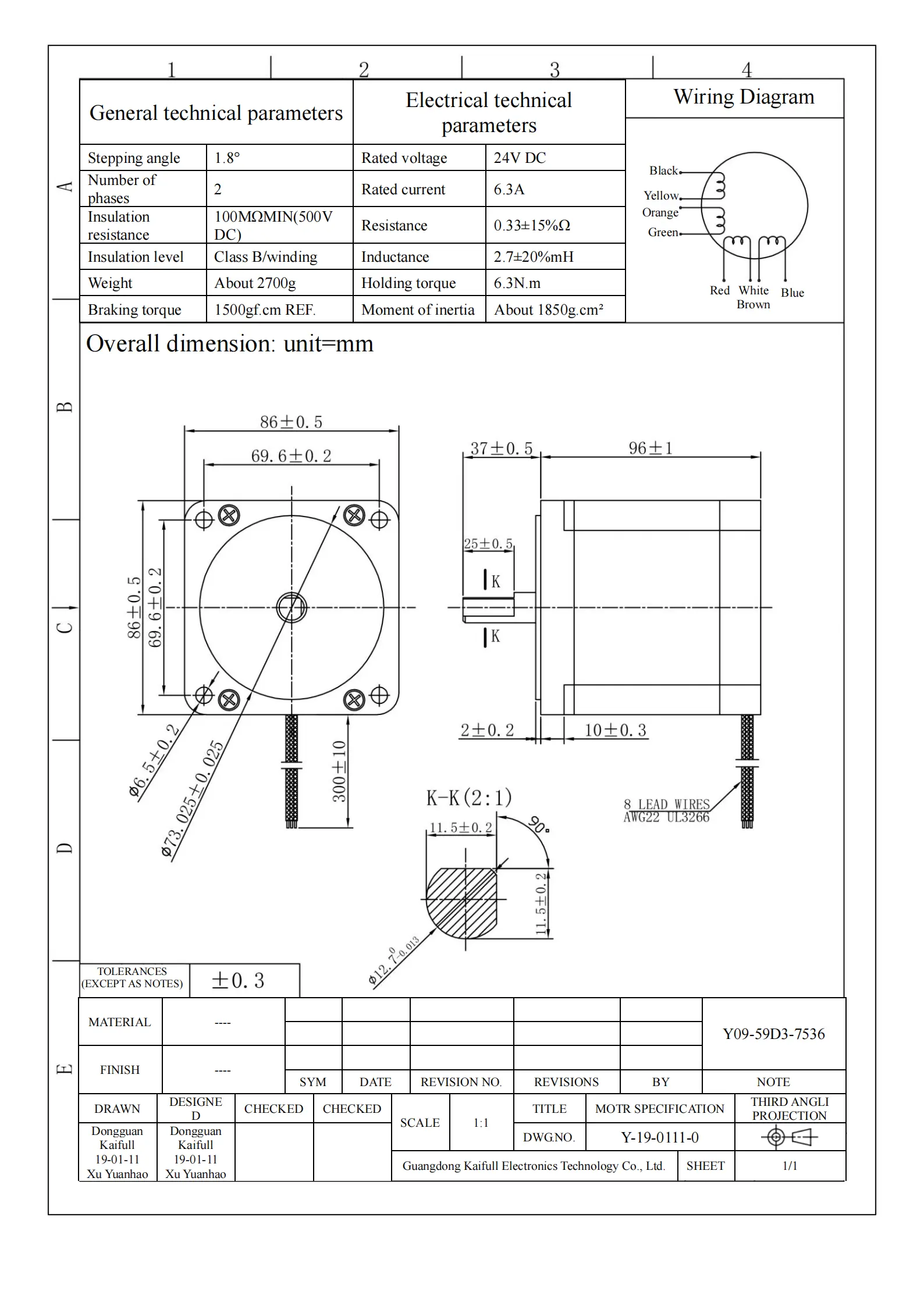

Operating at 24V DC with a rated current of 6.3A, this motor delivers a strong holding torque of 6.3N.m, making it suitable for heavy-duty tasks where stability and strength are critical. The motor features a low resistance of 0.33Ω ±15% and inductance of 2.7mH ±20%, enabling efficient operation with minimal power loss. Its advanced Class B winding insulation ensures safe and reliable performance under continuous loads, while the insulation resistance of 100MΩ (500V DC) enhances its durability.

Weighing approximately 2700g, the Y09-59D3-7536 is built to handle demanding applications. Its high braking torque of 1500gf.cm provides reliable stopping power, while the large moment of inertia of about 1850g.cm² ensures smooth and stable movement even under high load conditions.

Whether you are looking for precise motion control in CNC systems or heavy-duty industrial automation, the Y09-59D3-7536 stepper motor offers the performance, durability, and reliability needed to get the job done efficiently.
