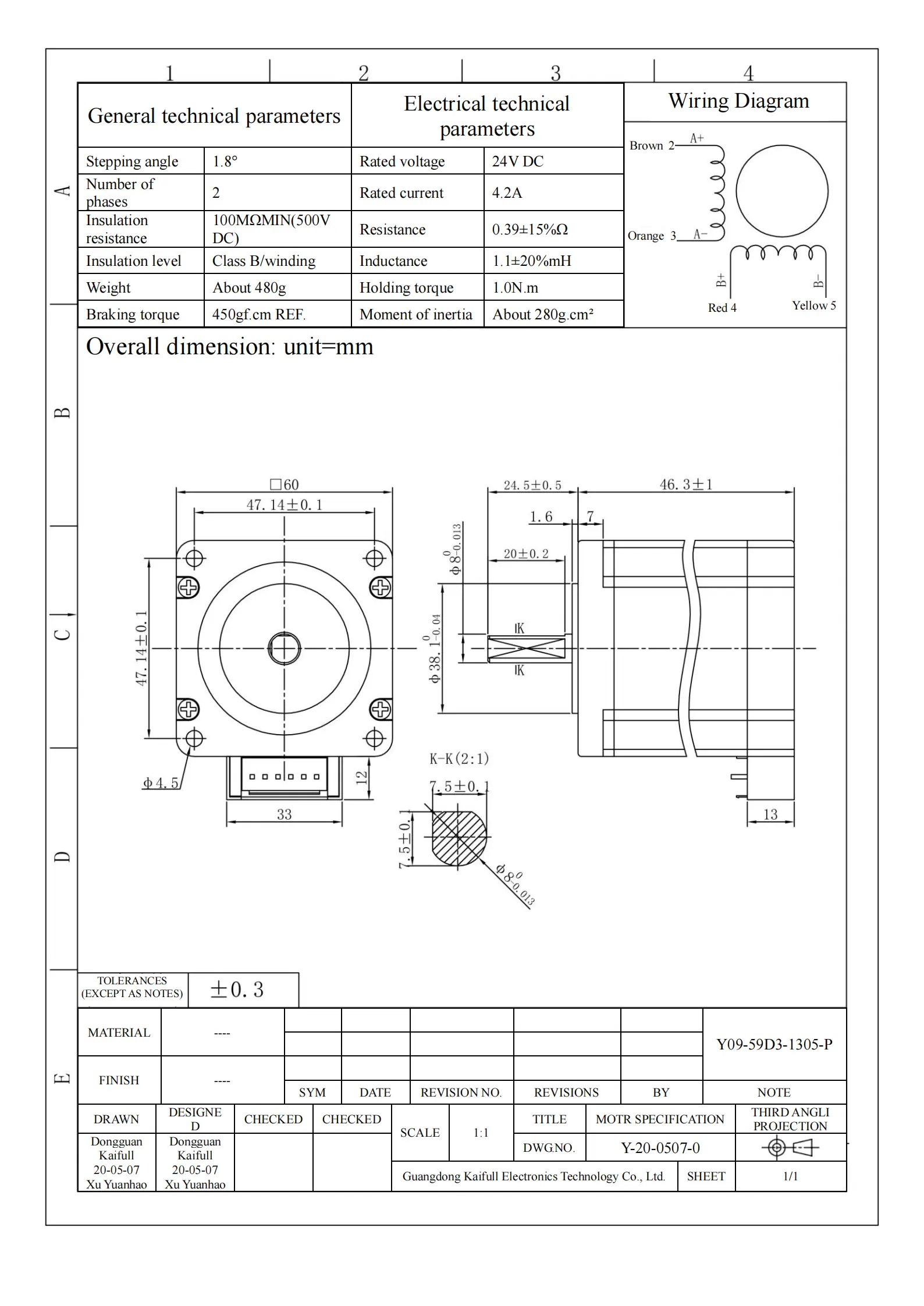

High Torque 1.8° Stepper Motor - Y09-59D3-1305-P

The Y09-59D3-1305-P stepper motor is a high-performance solution designed for applications requiring precise motion control and high torque. With a stepping angle of 1.8°, it delivers reliable, accurate positioning, making it ideal for use in CNC machinery, 3D printers, and industrial automation systems. Powered by a 24V DC voltage and operating at a rated current of 4.2A, this motor provides the necessary drive for robust and efficient operation.

This two-phase motor features a high insulation resistance of 100MΩ (500V DC) and Class B insulation, ensuring safety and longevity, even in high-temperature environments. The low resistance of 0.39Ω ±15% and inductance of 1.1mH ±20% contribute to its smooth performance across a wide range of speeds and loads, making it versatile for various industrial tasks.

Weighing approximately 480g, the Y09-59D3-1305-P offers a holding torque of 1.0N.m, providing strong holding power during idle states. Additionally, it is equipped with a braking torque of 450gf.cm for reliable stopping performance. The motor's moment of inertia of about 280g.cm² ensures fast and responsive movement, making it suitable for applications where quick, accurate positioning is essential.

Engineered for durability and reliability, this motor is designed to meet the demands of modern automation, manufacturing, and precision equipment, making it an ideal choice for engineers and manufacturers who seek optimal performance in a compact, lightweight package.
