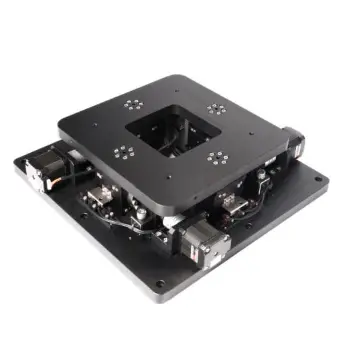

High-Precision XY Positioning Platform YK-XXY200PR-S1-1255

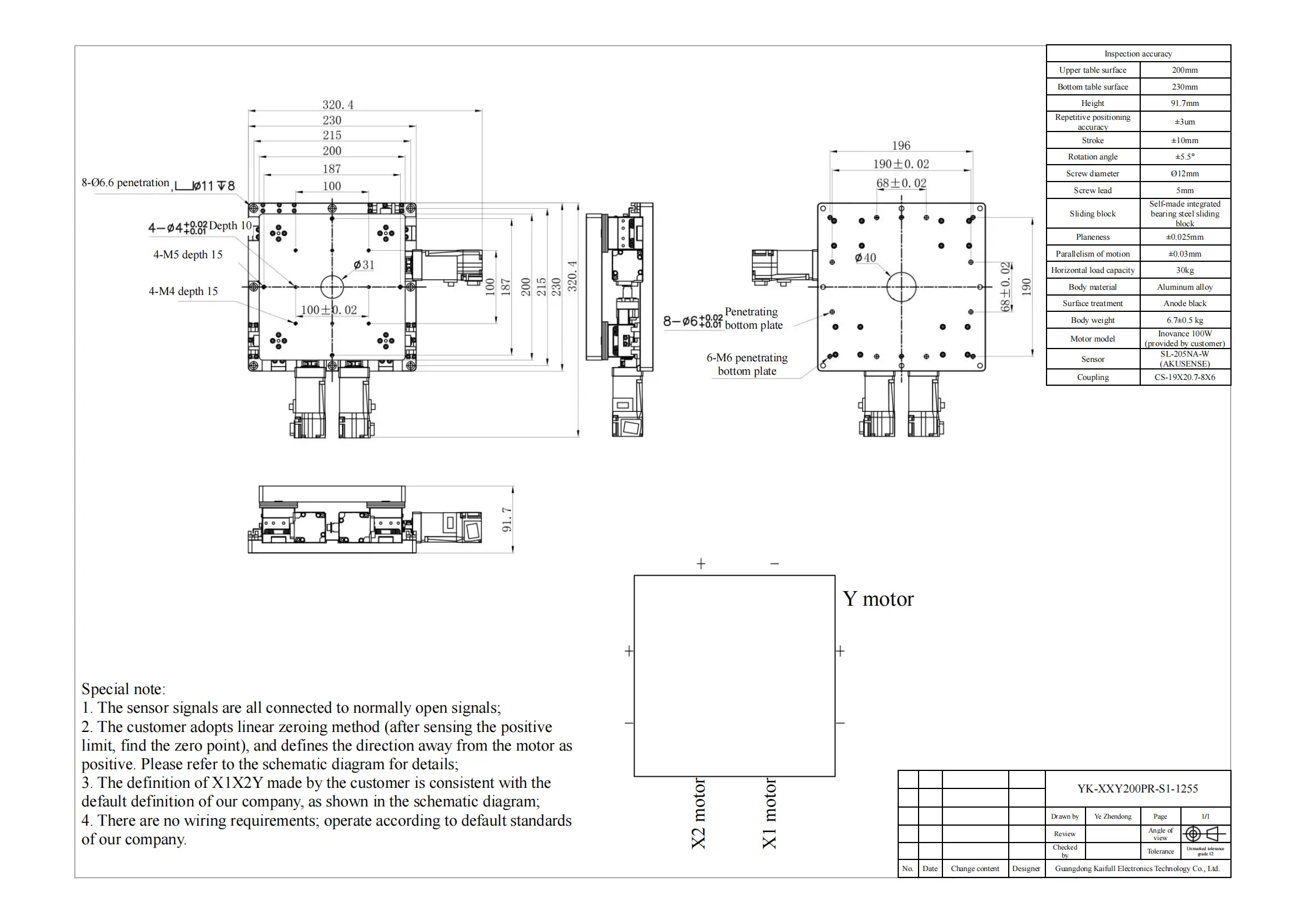

The YK-XXY200PR-S1-1255 is a high-performance XY positioning platform designed for applications requiring exceptional accuracy and stability. With a robust upper table surface measuring 200mm and a bottom surface of 230mm, this platform supports a substantial horizontal load capacity of up to 30kg. The integrated design features self-made bearing steel sliding blocks for smooth motion and enhanced durability.

Engineered for precision, the platform achieves a repetitive positioning accuracy of ±3μm, making it ideal for tasks demanding fine adjustments. The stroke capability of ±10mm allows for versatile movement, while the rotation angle of ±5.5° ensures adaptability for various operational needs. The screw diameter of 12mm and lead of 5mm facilitate effective linear motion control, contributing to the overall performance.

Constructed from high-quality aluminum alloy,the YK-XXY200PR-S1-1255 is finished with an anodized black surface treatment, enhancing its aesthetic and corrosion resistance. The planeness and parallelism specifications of ±0.025mm and ±0.03mm, respectively, further ensure that the platform maintains its structural integrity and operational effectiveness over time.

This positioning platform is suitable for a wide range of applications, including automation, assembly, and precise positioning in scientific research. Its robust construction and high precision make it a reliable choice for professionals in various industries.
