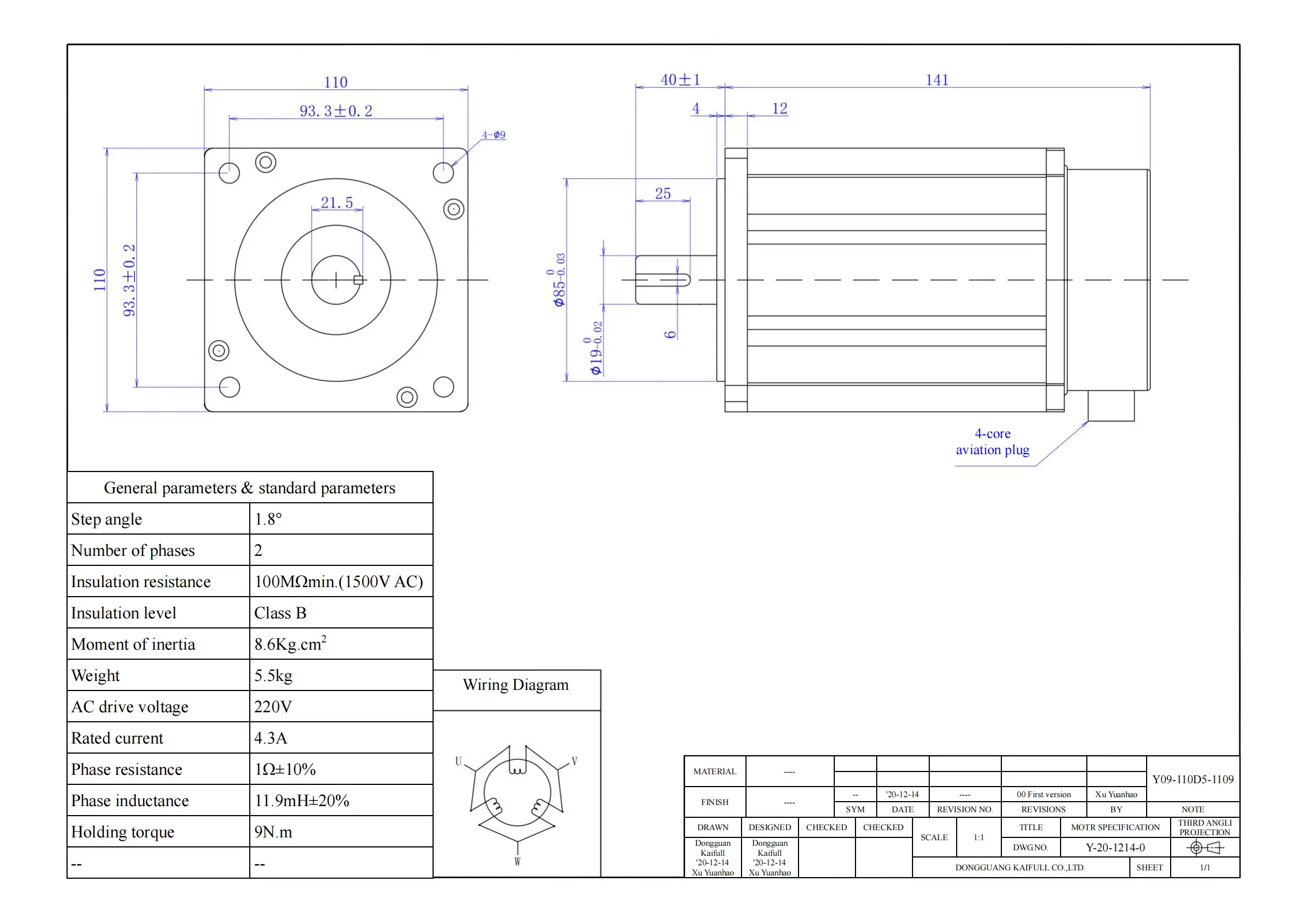

High Power 1.8° Stepper Motor - Y09-110D5-1109

The Y09-110D5-1109 stepper motor is a robust, high-power solution engineered for demanding industrial applications requiring precision and power. With a stepping angle of 1.8° and designed for use in high-torque scenarios, this motor is ideal for tasks such as industrial automation, robotics, CNC machining, and heavy-duty equipment.

Operating on a 220V AC drive voltage and a rated current of 4.3A, the motor delivers a substantial holding torque of 9N.m, ensuring strong and consistent force during operations. Its phase resistance of 1Ω ±10% and inductance of 11.9mH ±20% make it suitable for high-performance tasks where consistent speed and torque are essential.

The motor's solid design features a moment of inertia of 8.6Kg.cm², making it capable of handling high inertia loads with smooth, responsive movement. Weighing 5.5kg, the Y09-110D5-1109 is built for heavy-duty operations, ensuring reliability in demanding environments. Additionally, it features high insulation resistance of 100MΩ (1500V AC) and Class B insulation, providing enhanced protection and longevity, even under continuous operation.

This two-phase stepper motor is a versatile solution, delivering the power and precision required for advanced manufacturing processes, offering engineers and manufacturers a reliable choice for achieving high-accuracy movement in industrial setups.
