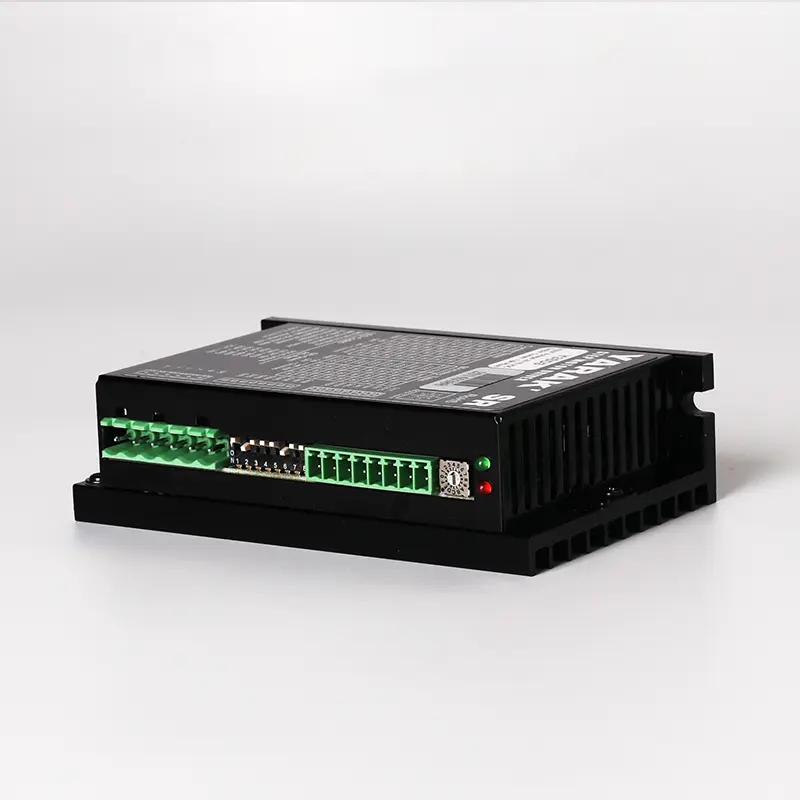

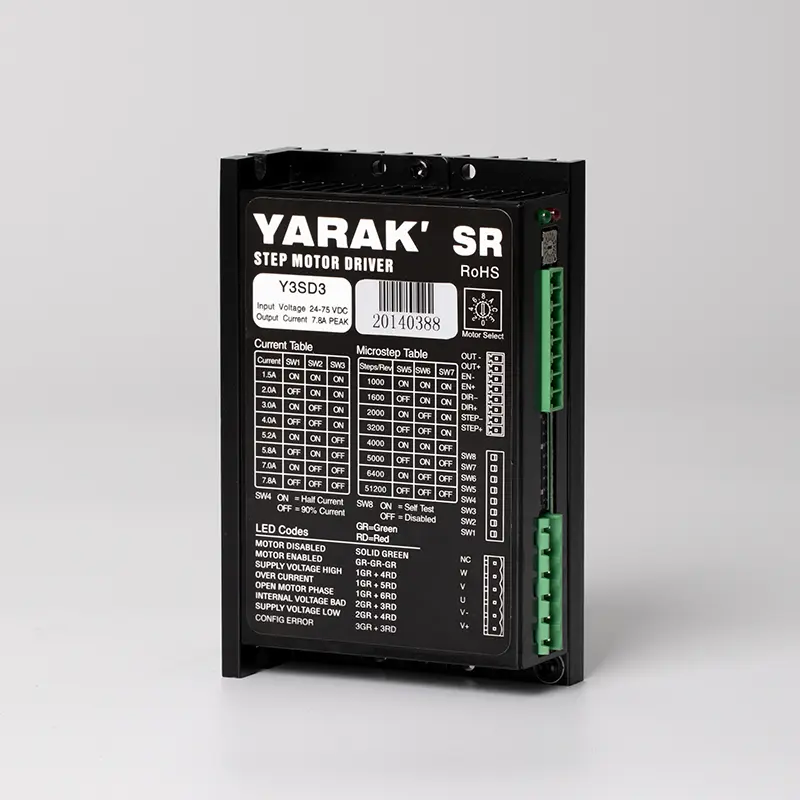

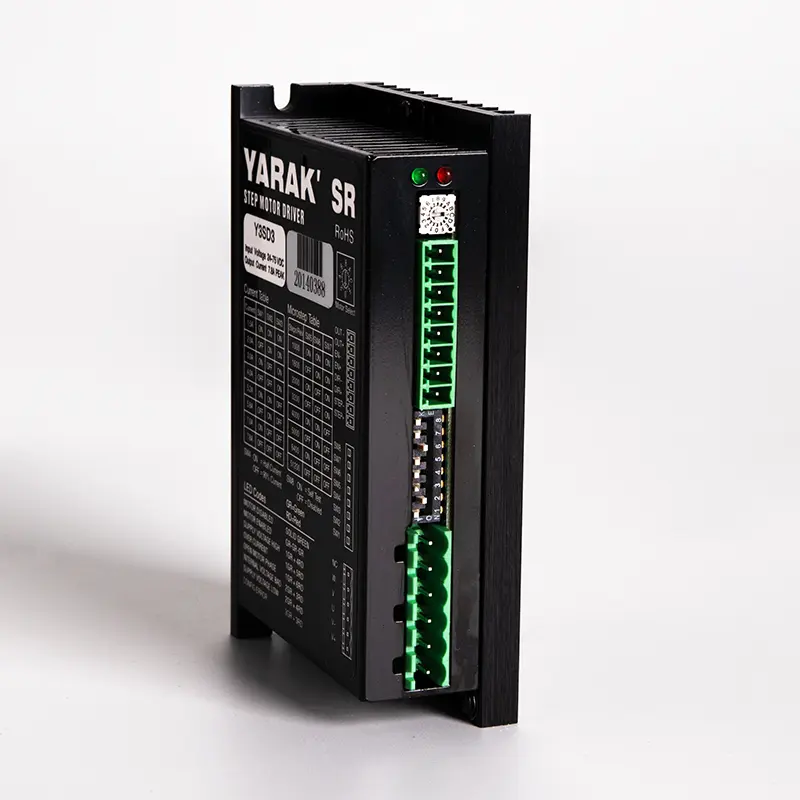

High-Performance Y3SD3 Pulse Control Driver for Three-Phase Stepper Motors
High-Performance Y3SD3 Pulse Control Driver for Three-Phase Stepper Motors
High-Performance Y3SD3 Pulse Control Driver for Three-Phase Stepper Motors

High-Performance Y3SD3 Pulse Control Driver for Three-Phase Stepper Motors

Y3SD3 three-phase stepper motor driver with 2.4-7.8A output, pulse control, compact size 118x75.5x33mm, 24-75V DC.

    Contact us
    Detail description
    Technical parameter
    Product size
    Data download

    The Y3SD3 Pulse Control Driver is engineered for robust control of three-phase stepper motors, delivering an adaptable output current of 2.4A to 7.8A, tailored for applications requiring precision and power. Supporting an input voltage range from 24V to 75V DC and compatible with a 5-24V input signal voltage, this driver enables effective pulse control for high-efficiency operation. Compactly designed at 118mm x 75.5mm x 33mm, the Y3SD3 is suitable for environments where space and performance are essential.

    ●Motor configuration and performance parameters

    Parameter type

    Numerical value

    unit

    Input voltage

    24-75

    VDC

    Output current

    2.4-7.8

    A

    Control mode

    Pulse + direction、CW/CCW



    Adaptive motor

    42-57mm



    Phase number

    2

    phases

    Maximum frequency

    250k

    hz

    Encoder input

    nonsupport



    Encoder output

    nonsupport

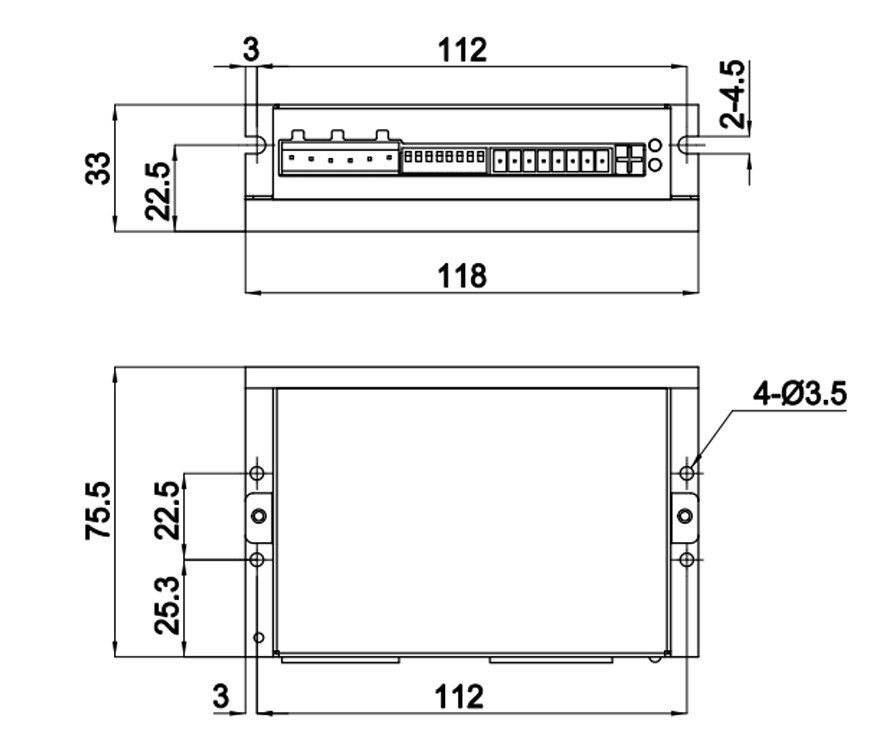

    Product size

    118*75.5*33

    mm

    weight

    0.25

    kg

    Y3SD3
