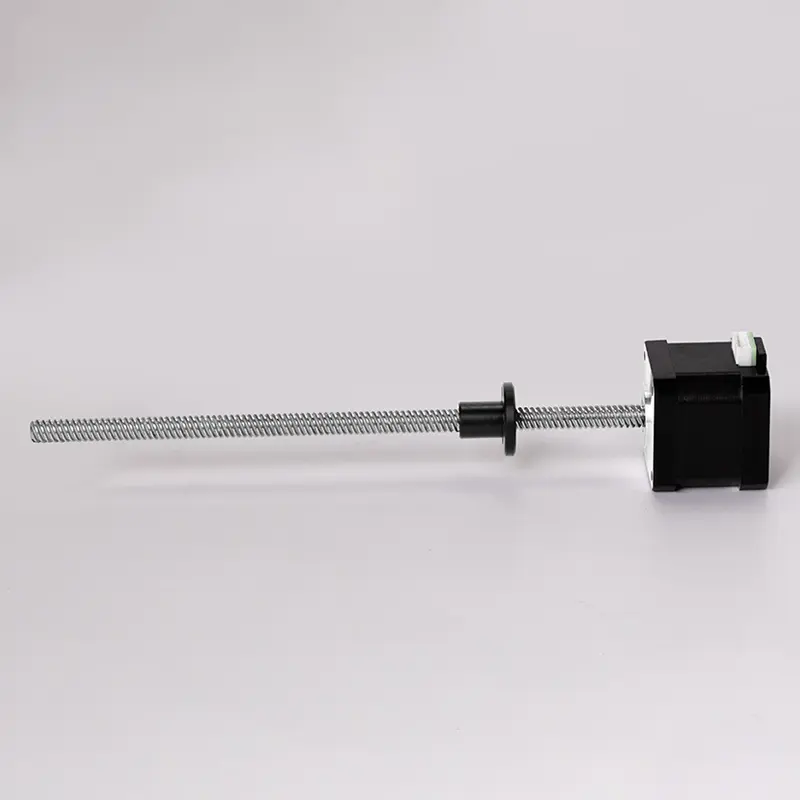

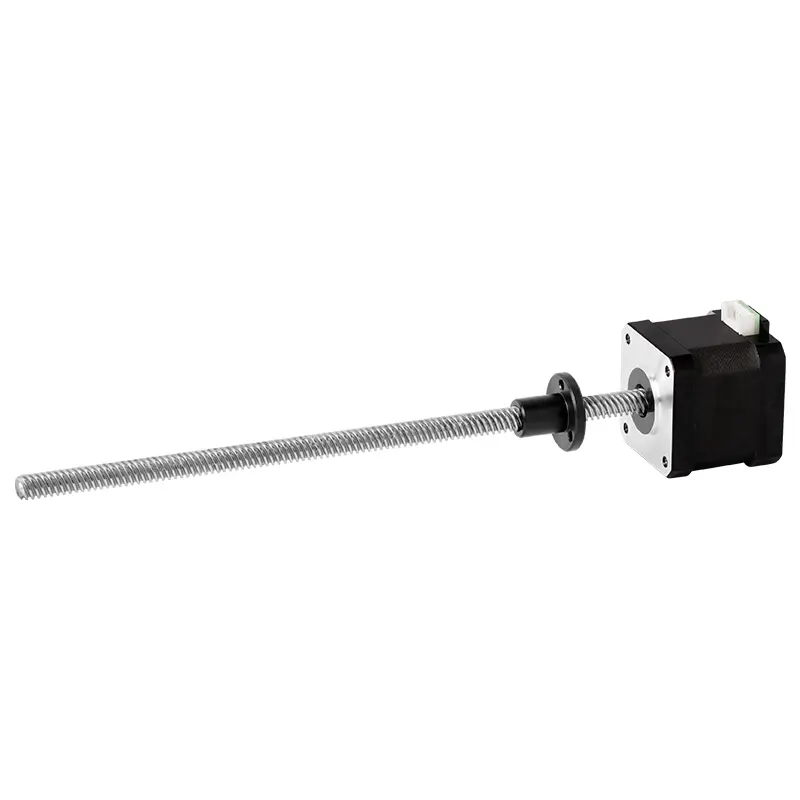

High-Performance Y07-43D1-3001-08LC-210 Screw Stepper Motor for Precision Applications

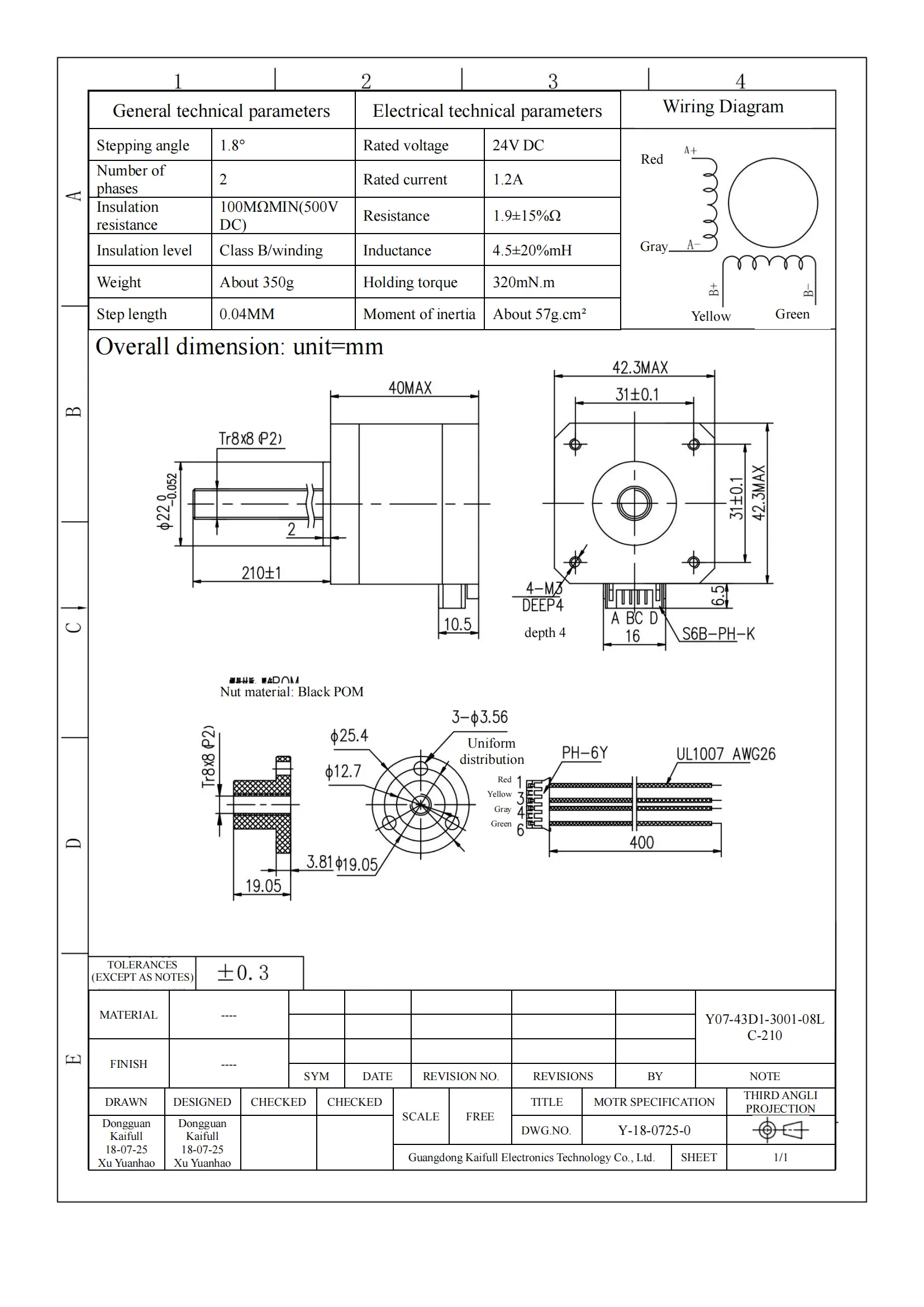

The Y07-43D1-3001-08LC-210 screw stepper motor is engineered to deliver outstanding performance and precision in various applications, including robotics, automation, and CNC machinery. With a stepping angle of 1.8°, this motor ensures accurate positioning, making it ideal for tasks that demand meticulous control and repeatability.

Operating at a rated voltage of 24VDC and featuring a two-phase design, the Y07-43D1-3001-08LC-210 provides a rated current of 1.2A. This design enhances the motor's efficiency and allows for smooth operation under varying loads. The insulation resistance is rated at a minimum of 100 MΩ at 500V DC, ensuring durability and reliability in high-performance environments.

This model boasts a resistance of 1.9 ±15% Ω and an inductance of 4.5 ±20% mH, promoting stable performance across a range of operating conditions. The motor’s Class B insulation level means it can withstand higher temperatures while maintaining efficiency. Weighing approximately 350g, it offers a robust construction without compromising on weight, facilitating easy integration into various systems.

With a holding torque of 320 mN·m, the Y07-43D1-3001-08LC-210 maintains excellent stability, which is crucial when precise positioning is required. Its step length of 0.04 mm allows for fine adjustments, making it suitable for applications where exact positioning is critical. The moment of inertia is approximately 57 g·cm², contributing to the motor’s responsive performance during operation.

In conclusion, the Y07-43D1-3001-08LC-210 screw stepper motor is a reliable choice for applications requiring high torque and precision, making it an invaluable asset in any high-tech environment.
