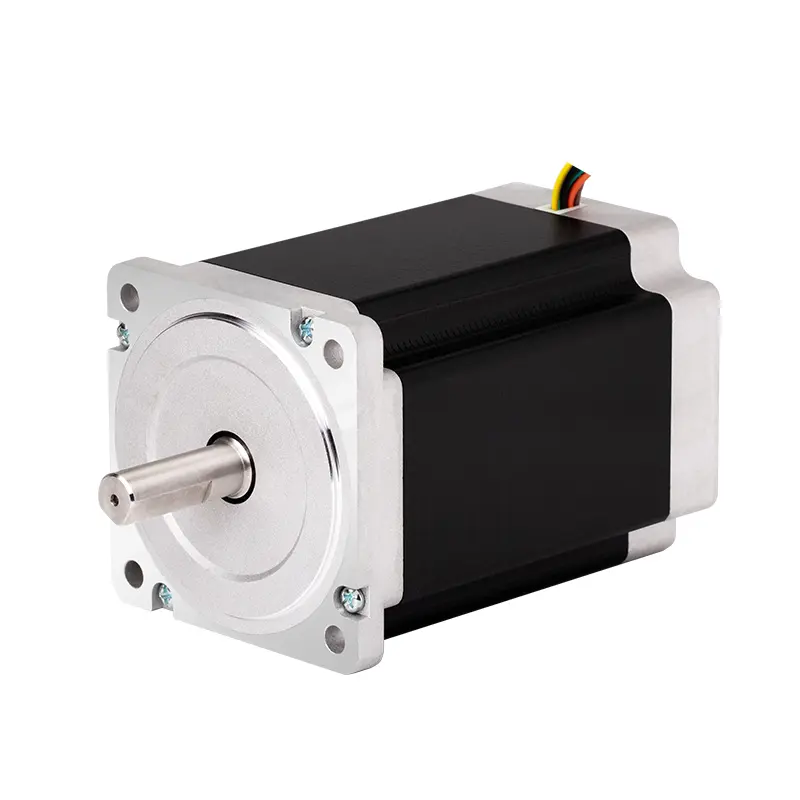

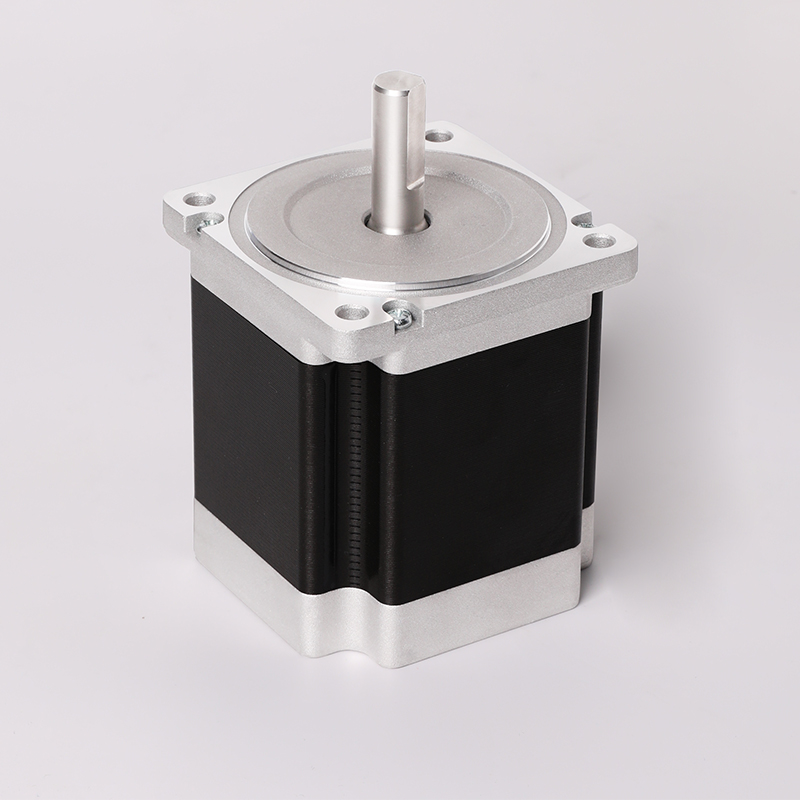

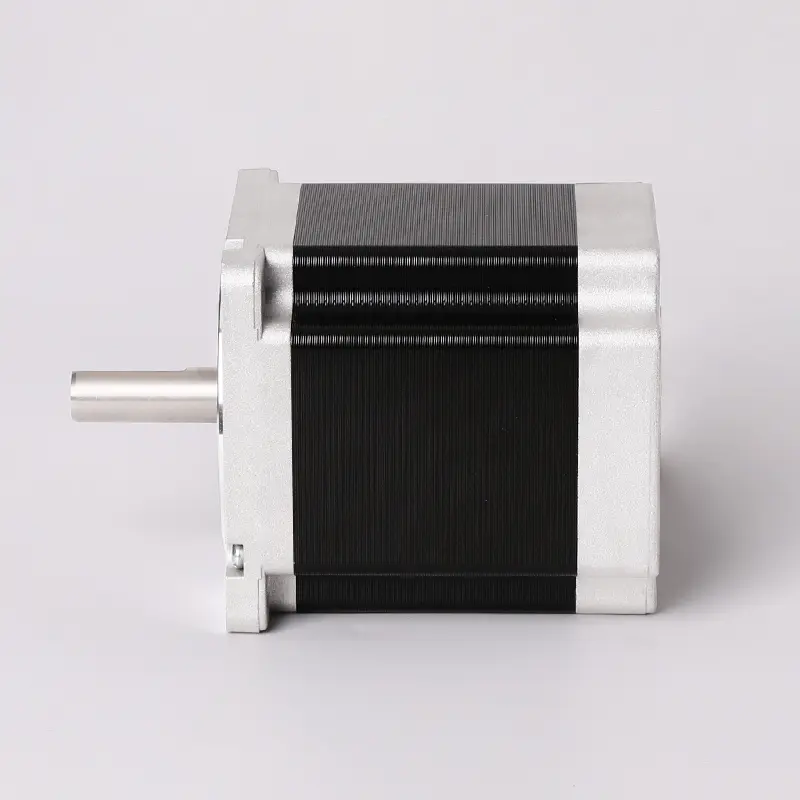

High-Performance 24V Stepper Motor Y09-59D3-7655 with 8.9N.m Holding Torque

The Y09-59D3-7655 stepper motor is built for precision and power, ideal for applications that require consistent torque and reliability. Operating at 24V DC, this motor delivers a robust holding torque of 8.9N.m, making it suitable for demanding industrial automation systems, CNC machines, and robotics. With a stepping angle of 1.8° and a rated current of 5.6A in parallel, the Y09-59D3-7655 provides controlled movement and exceptional stability.

Constructed to withstand intensive operation, this stepper motor includes Class B insulation, ensuring high resistance up to 100MΩ for optimal safety. The motor’s phase resistance of 0.49Ω ±15% and inductance of 5.4mH ±20% contribute to efficient energy management and smooth performance. Weighing approximately 3.8kg with a moment of inertia of 2750g.cm², it offers increased stability for high-precision positioning tasks. The Y09-59D3-7655 is an excellent choice for heavy-duty applications demanding both torque and precision.
