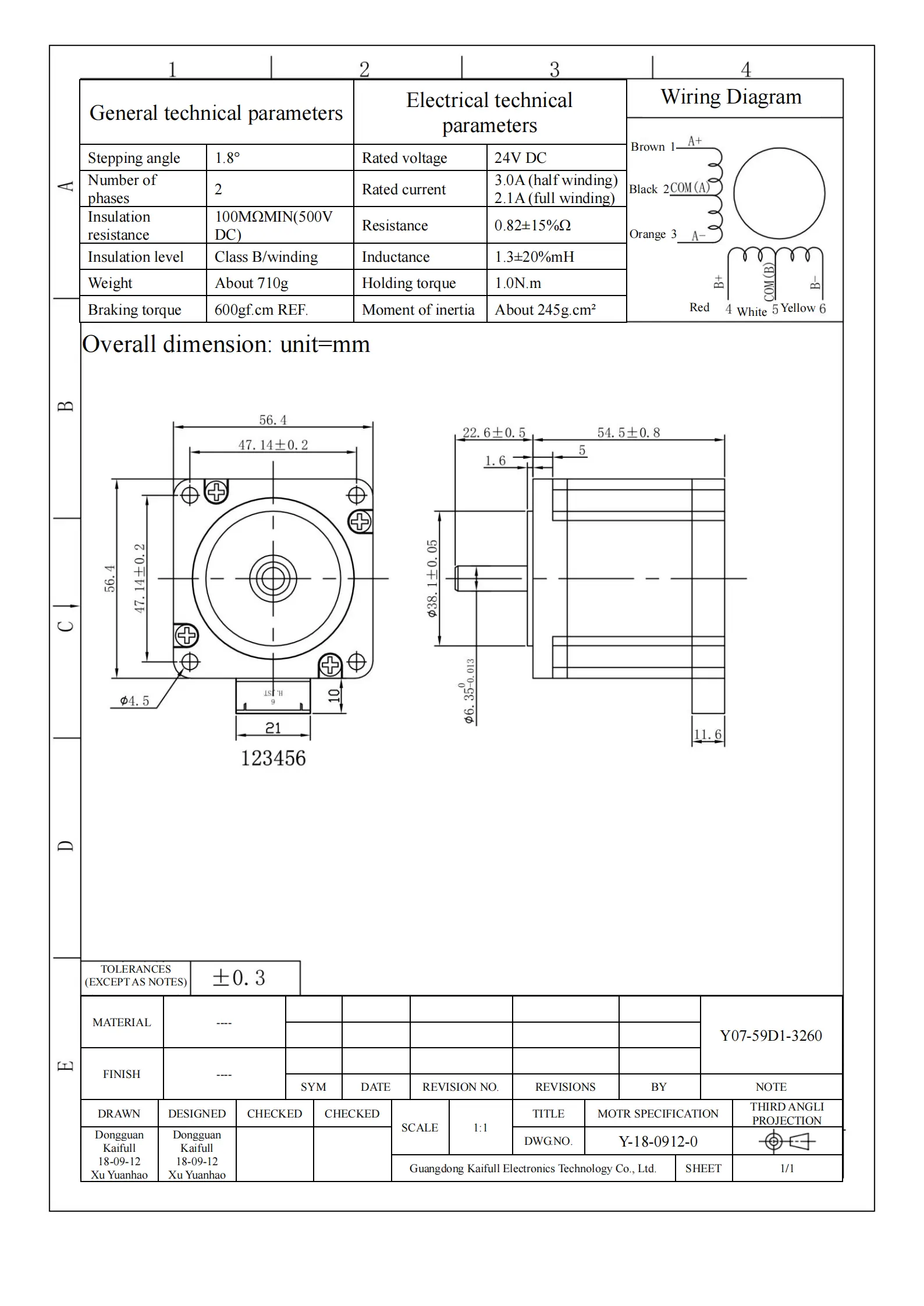

High-Performance 24V DC Stepper Motor Y07-59D1-3260

The Y07-59D1-3260 stepper motor is engineered for high precision and reliability in various applications. With a 1.8° stepping angle and a rated voltage of 24V DC, this motor delivers exceptional performance, making it ideal for automation and robotics.

This model features two phases and a rated current of 3.0A (in half winding) and 2.1A (in full winding), ensuring flexibility and efficiency in operation. It boasts an impressive insulation resistance of 100MΩ minimum (at 500V DC), with a resistance value of 0.82±15Ω, enhancing its durability and thermal stability. The Class B insulation level and an inductance of 1.3±20% mH contribute to smooth and reliable operation.

The Y07-59D1-3260 offers a holding torque of 1.0N.m and a braking torque of 600gf.cm, making it suitable for demanding applications requiring precise motion control. Weighing approximately 710g with a moment of inertia of about 245g.cm², this stepper motor combines power and compactness for optimal performance.
