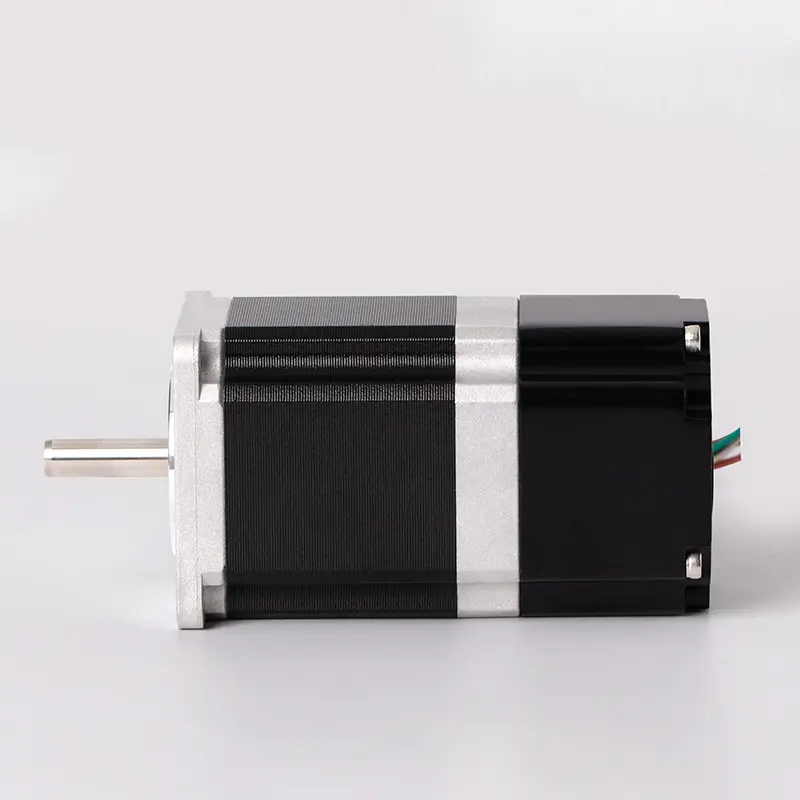

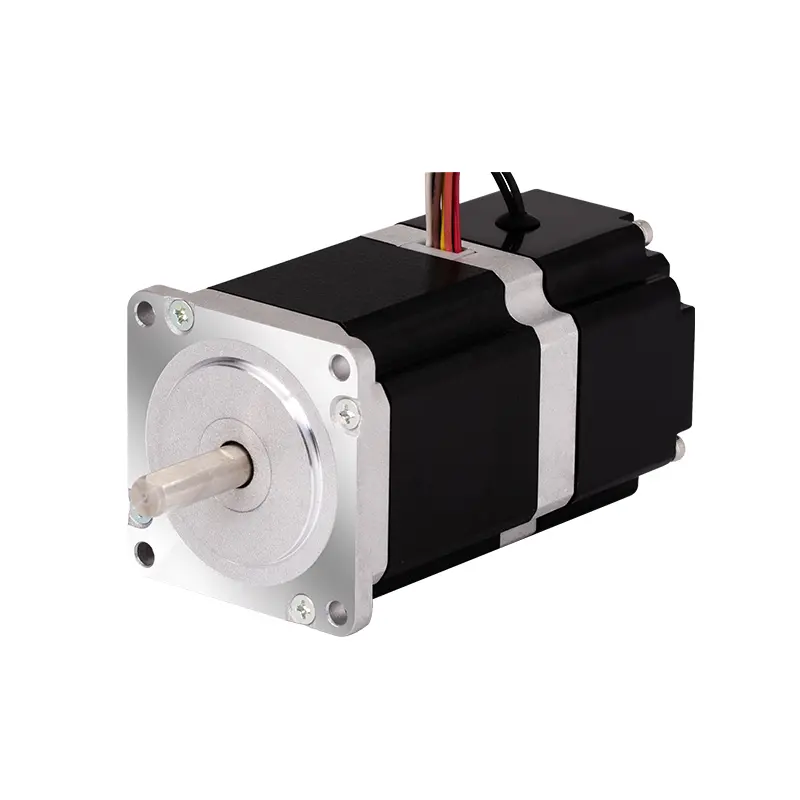

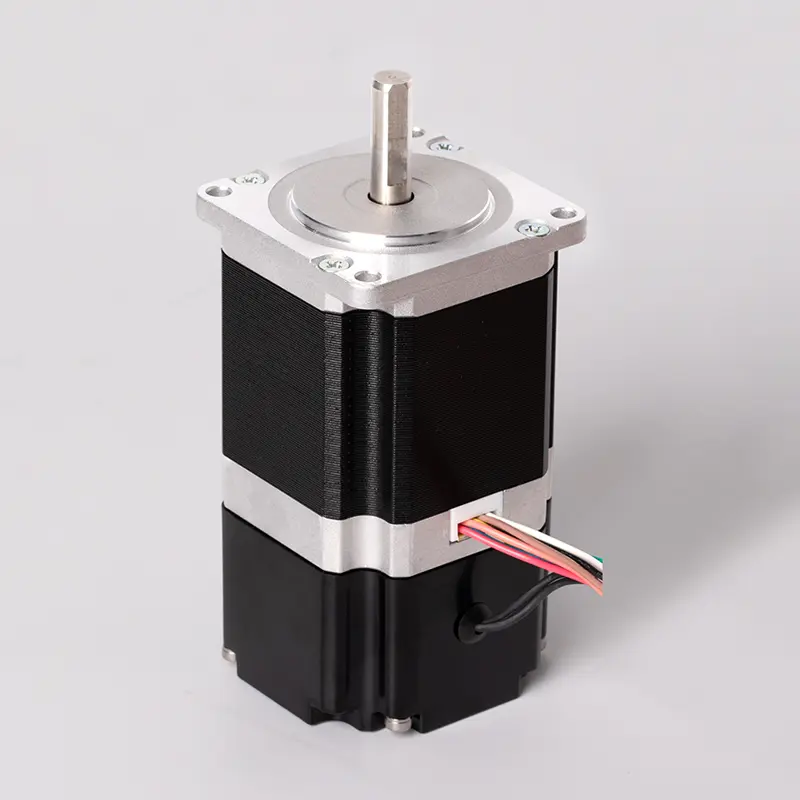

High-Performance 1.8V DC Stepper Motor Y07-59D1-4008M

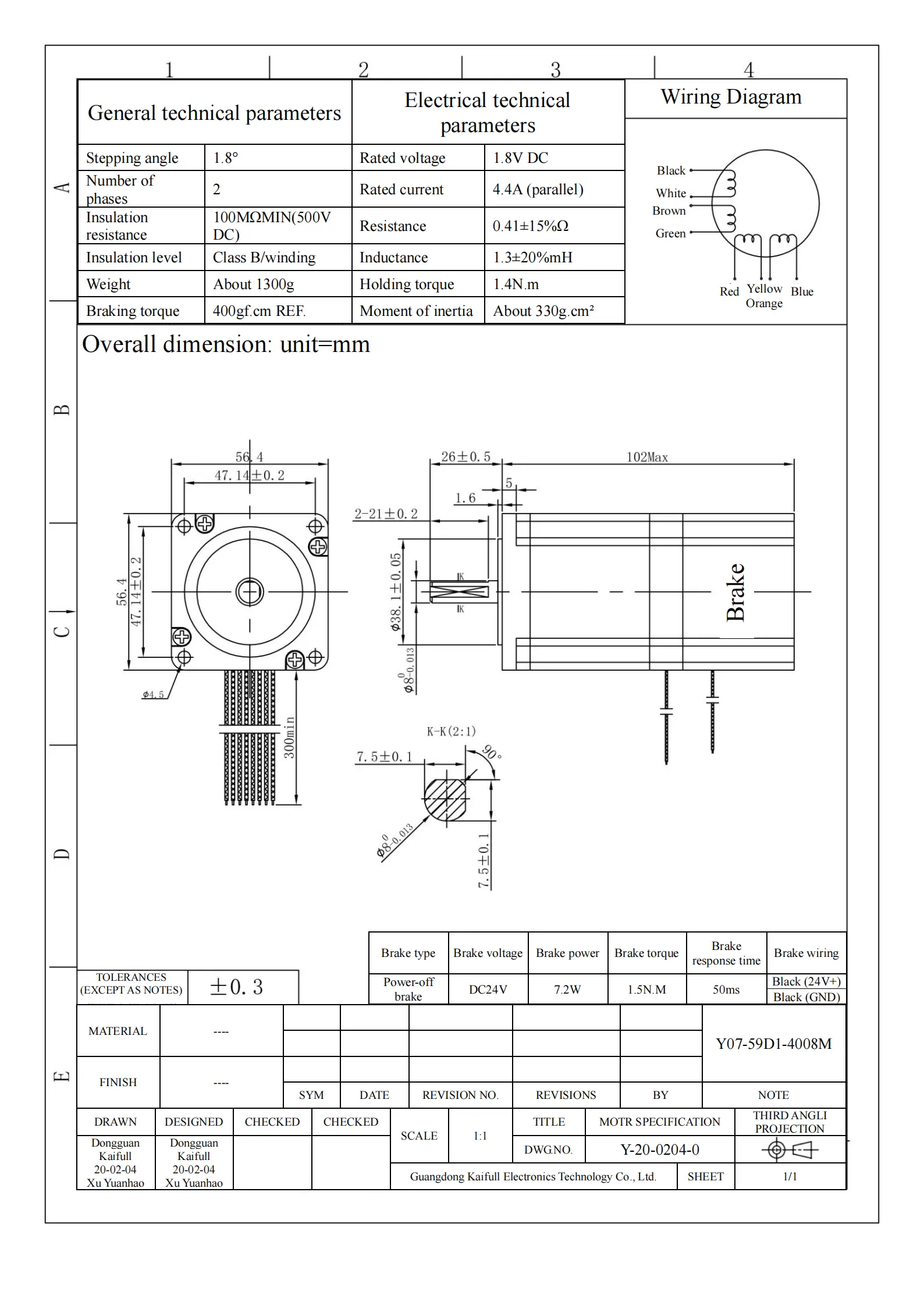

The Y07-59D1-4008M stepper motor is engineered for precision and durability, making it an ideal choice for various automation applications. With a stepping angle of 1.8° and a rated voltage of 1.8V DC, this motor is optimized for efficiency and control.

Designed with a dual-phase configuration and a rated current of 4.4A (parallel), it provides a holding torque of 1.4N.m, ensuring reliable performance even under demanding conditions. Its braking torque of 400gf.cm enhances stability during operation, making it suitable for intricate motion tasks.

The motor features a robust insulation resistance of 100MΩ minimum (at 500V DC) and a resistance of 0.41±15Ω, ensuring long-term reliability. With a Class B insulation level and an inductance of 1.3±20% mH, the Y07-59D1-4008M delivers consistent performance and minimizes electrical interference.

Weighing approximately 1300g, with a moment of inertia of about 330g.cm², this stepper motor is designed to meet the rigorous demands of modern machinery, from robotics to CNC equipment.
