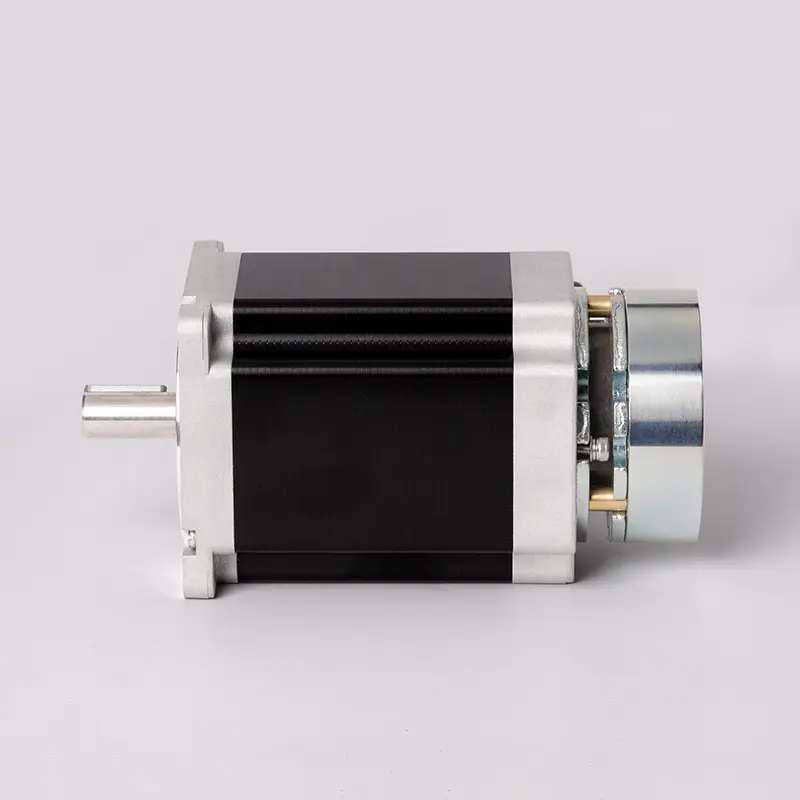

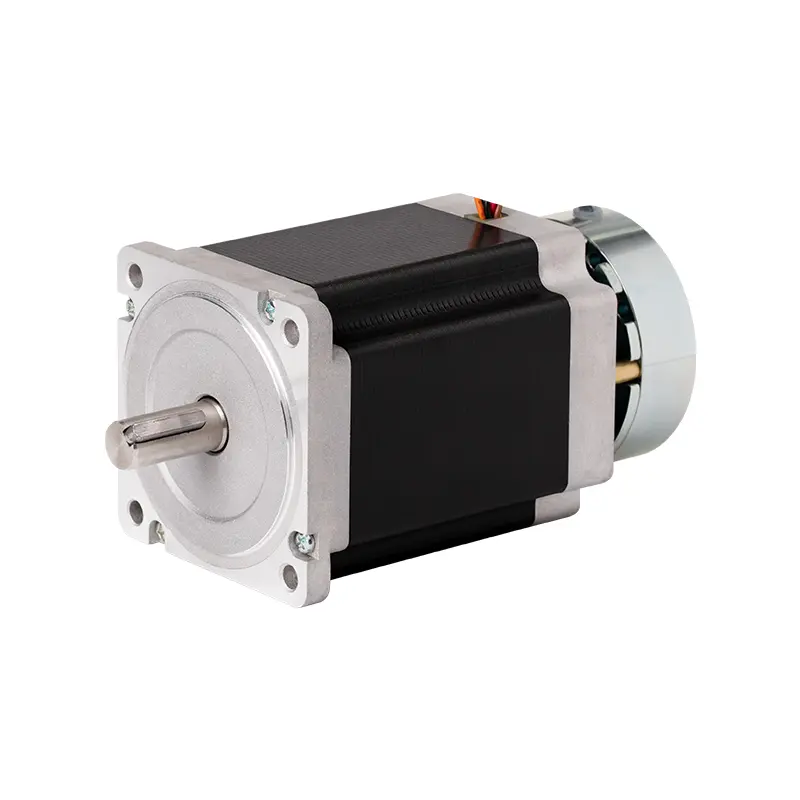

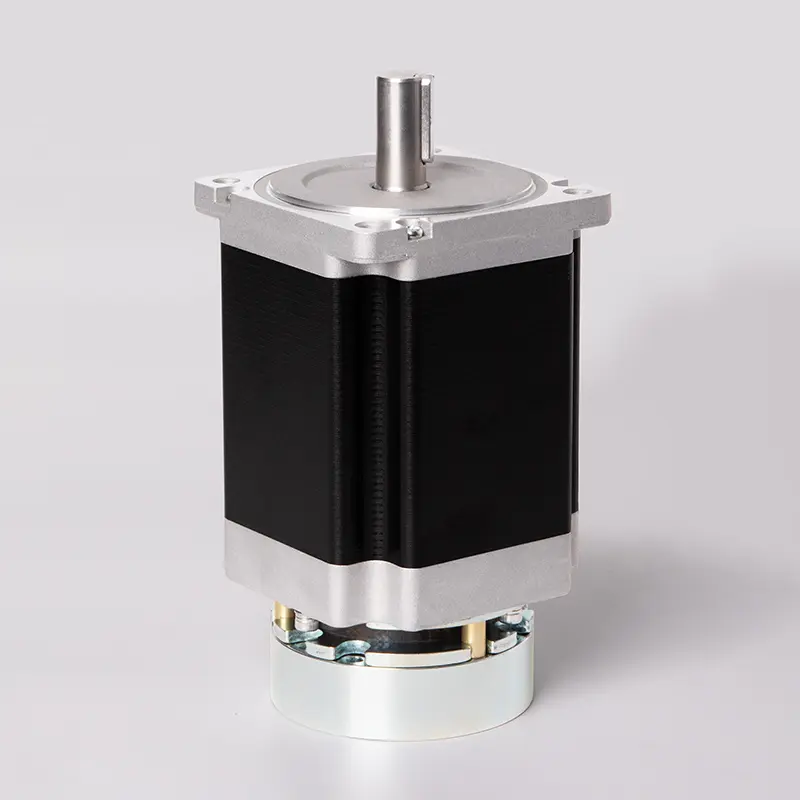

Heavy-Duty 36V Stepper Motor Y09-59D3-7658M with 9.5N.m Torque

The Y09-59D3-7658M stepper motor is engineered for high-performance and durability, making it a powerful choice for industrial applications that require exceptional torque and precision. With a stepping angle of 1.8° and a 36V DC drive voltage, this motor is capable of delivering a substantial holding torque of 9.5N.m. Ideal for applications in CNC machinery, automation systems, and robotic assemblies, it ensures reliable performance and precise movement.

Designed with Class B insulation and a high insulation resistance of 100MΩ, the Y09-59D3-7658M provides robust protection and stability during operation. The motor’s rated current in parallel mode is 5.6A, and it features a phase resistance of 0.4Ω ±10% and inductance of 4.2mH ±20%, allowing for efficient energy usage. Weighing approximately 4kg with a moment of inertia of 2500g.cm², this motor is optimized for applications requiring high load capacities and positioning accuracy. For projects requiring robust performance and control, the Y09-59D3-7658M is an excellent solution.
