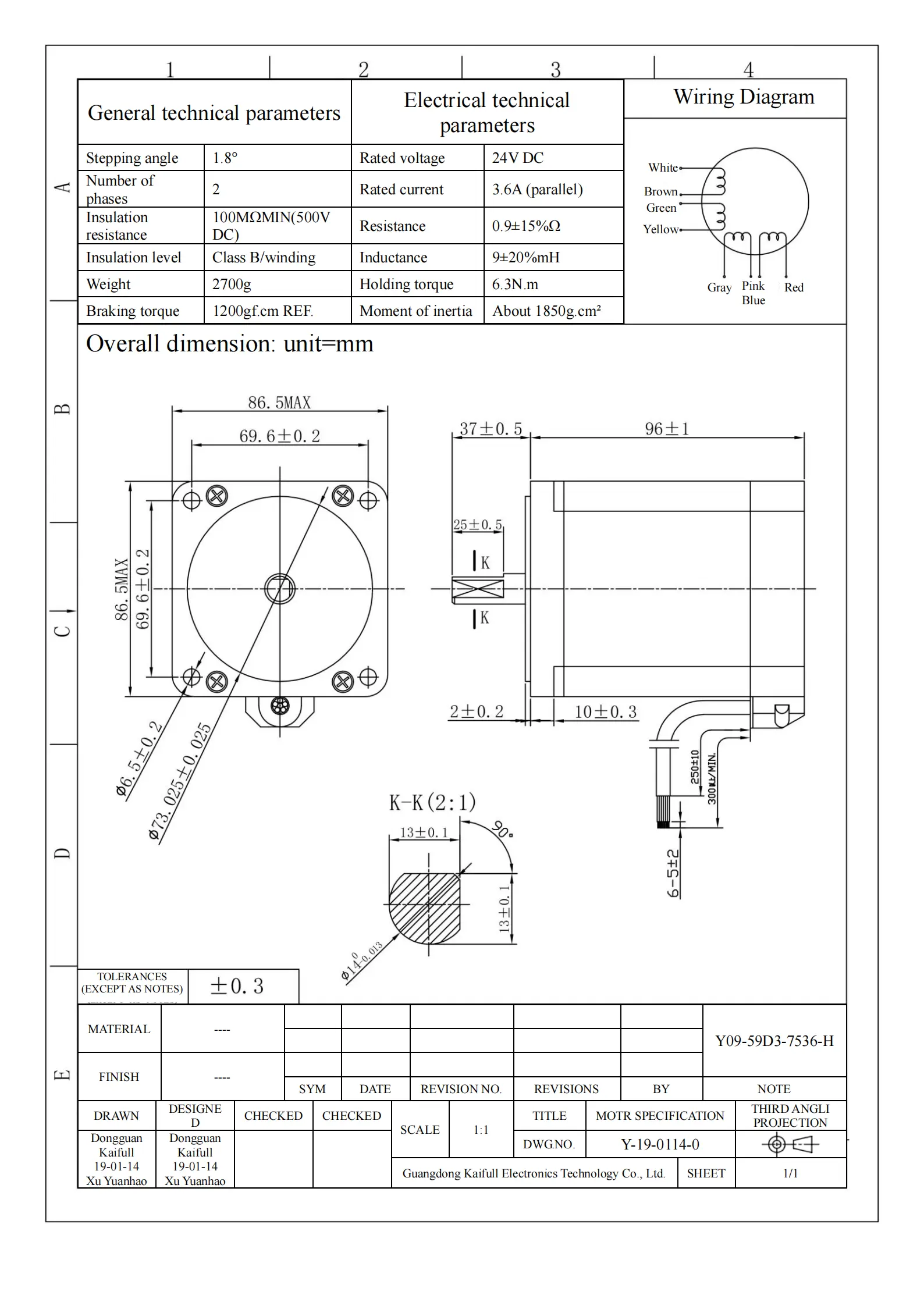

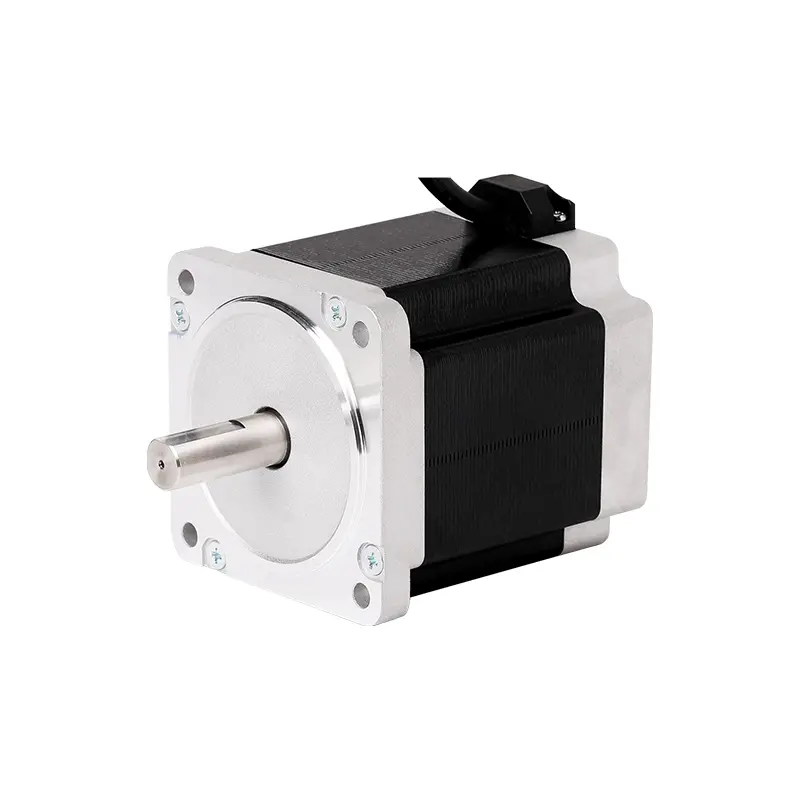

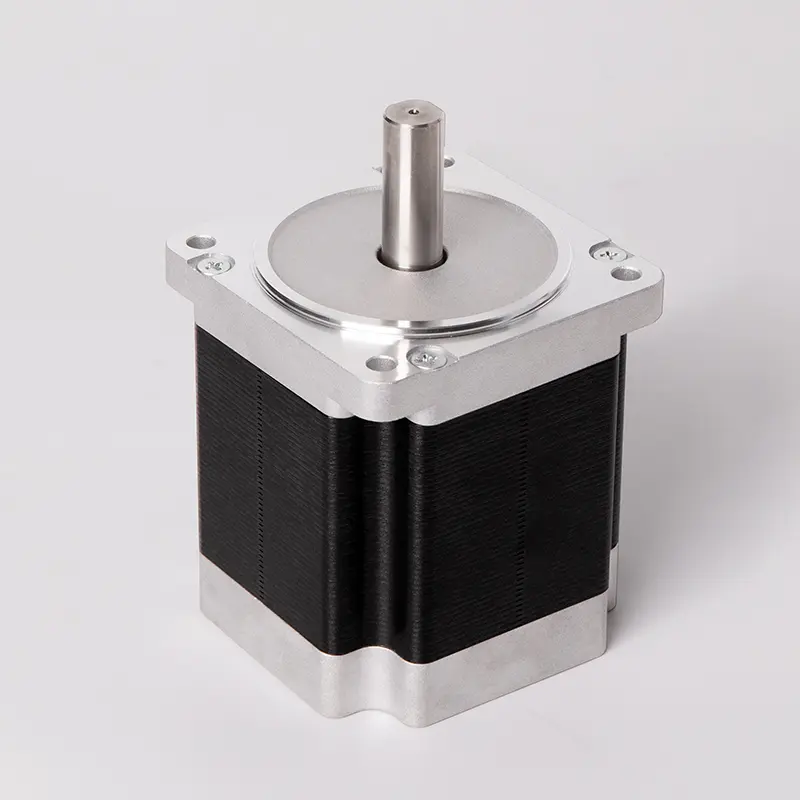

Heavy-Duty 24V DC Stepper Motor Y09-59D3-7536-H with 6.3N.m Holding Torque

The Y09-59D3-7536-H stepper motor is engineered for heavy-duty applications demanding high torque and precise motion control. Operating at a 1.8° step angle and powered by 24V DC, this motor delivers an impressive holding torque of 6.3N.m, making it ideal for industrial automation, large-scale CNC machines, and other high-torque requirements. With a rated current of 3.6A in parallel configuration, it ensures strong, steady performance, even under intensive workloads.

Built with Class B insulation, this motor features an insulation resistance of 100MΩ (at 500V DC) for added reliability. With a low winding resistance of 0.9Ω±15% and inductance of 9±20%mH, it achieves efficient operation while minimizing energy loss. Weighing approximately 2700g, the Y09-59D3-7536-H includes a braking torque of 1200gf.cm, providing stable stops and accurate position control.

The high moment of inertia at 1850g.cm² enhances stability, making this motor a go-to choice for projects requiring both high torque and precise control. The Y09-59D3-7536-H is tailored for professionals seeking robust and reliable performance in demanding automation environments.
