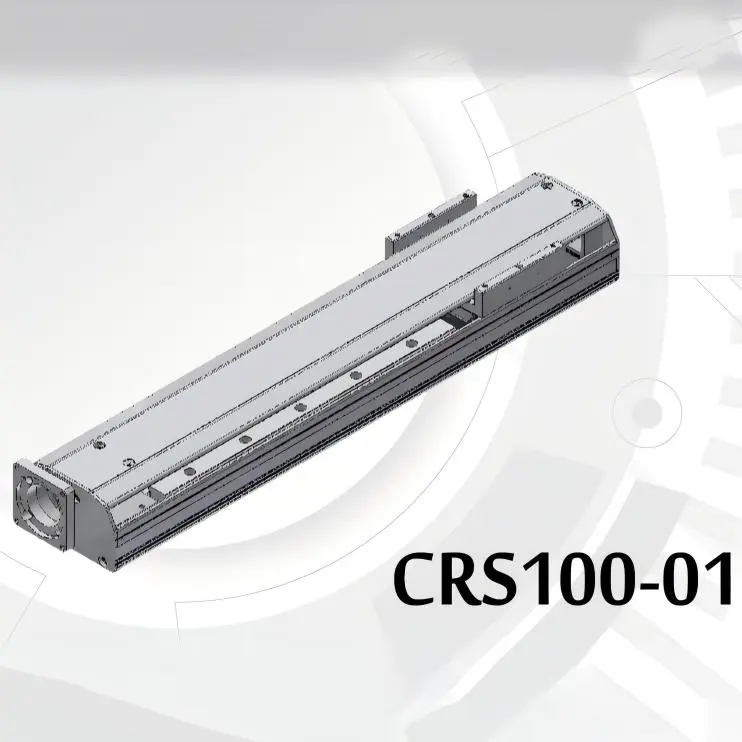

linear slide guide rail

CRS100-01

Screw drive, aluminum extrusion base, accuracy is mostly C7 level.

    Contact us
    Detail description
    Technical parameter
    Product size
    Data download

    It has the advantages of high rigidity and not easy deformation.
    Improve vibration suppression, surface rust treatment to improve corrosion resistance, both beautiful and durable.
    Suitable for all kinds of high-precision alignment mechanism and equipment.
    Full research and adjustment production, quality optimization, higher accuracy, improve production efficiency.

    ●Motor configuration and performance parameters
    Width (mm) : 100
    Height (mm) : 66
    Range (mm) : 100-800
    Screw diameter (mm) : Ø16
    Screw lead (mm) : 10
    Linear track: Type 20 wide track
    Repetition accuracy (mm) : ±0.01
    Horizontal load (kg) : 20
    Vertical load (kg) : 10
    Motor type: Yaskawa Servo 100W(self-purchased)
    Motor fixed: straight knot
    Rated speed: 500mm/s
    Body material: Aluminum alloy
    Surface treatment: anode bright book
    Sensor: EE-SX674

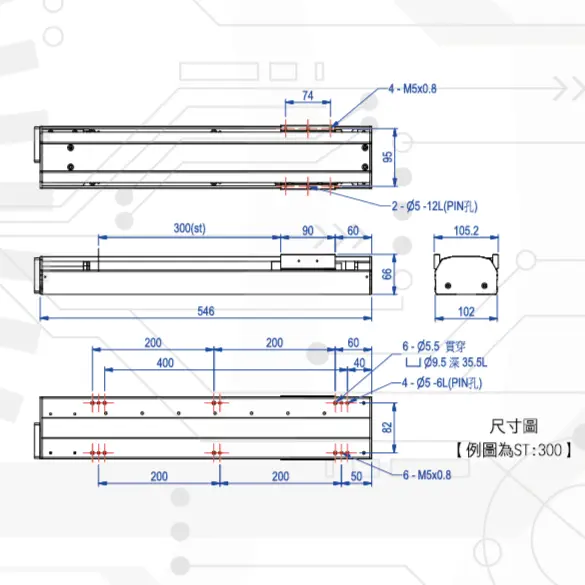

    CRS100-1
