Compact and Efficient 24V Stepper Motor Y07-20D1-2401

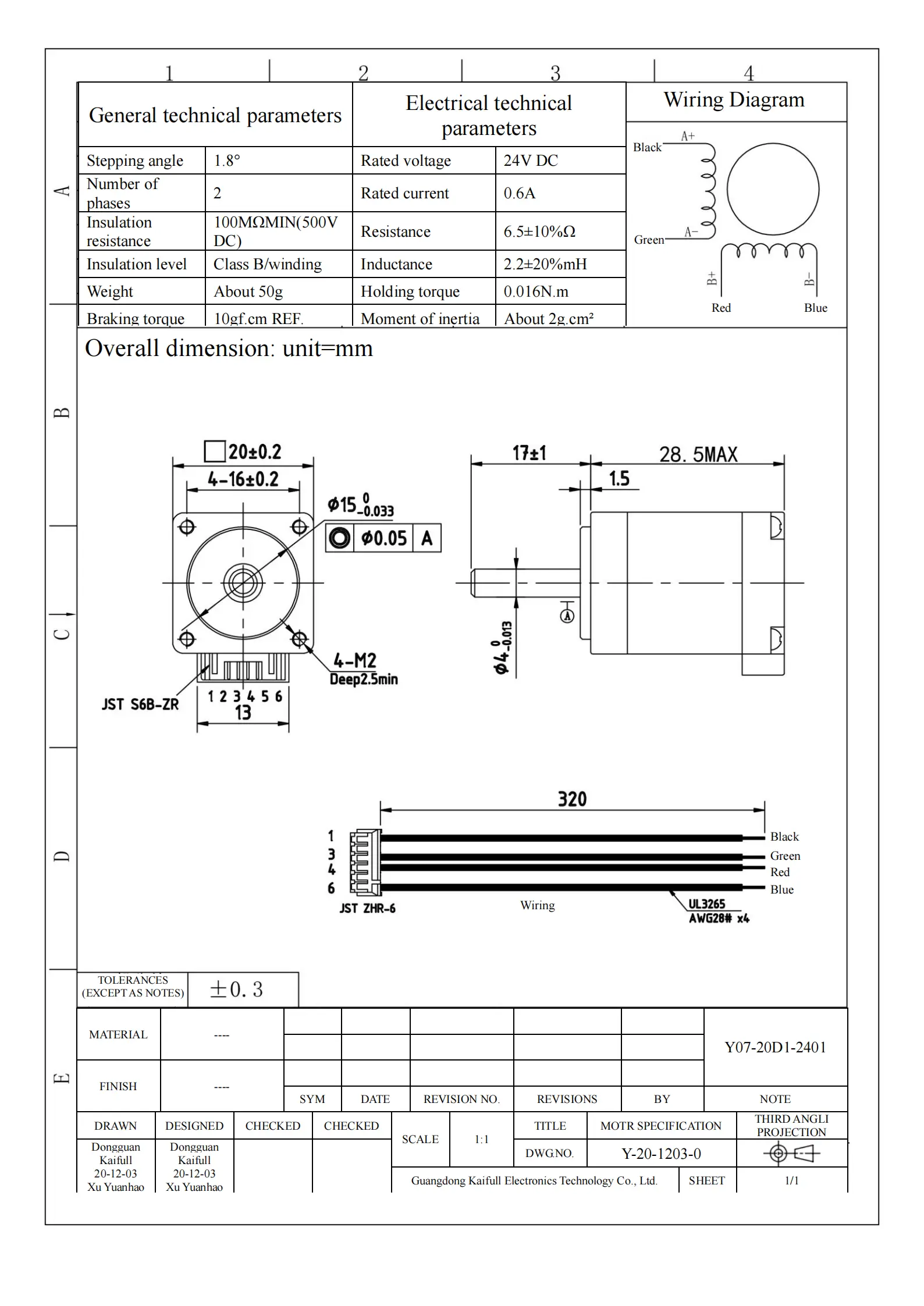

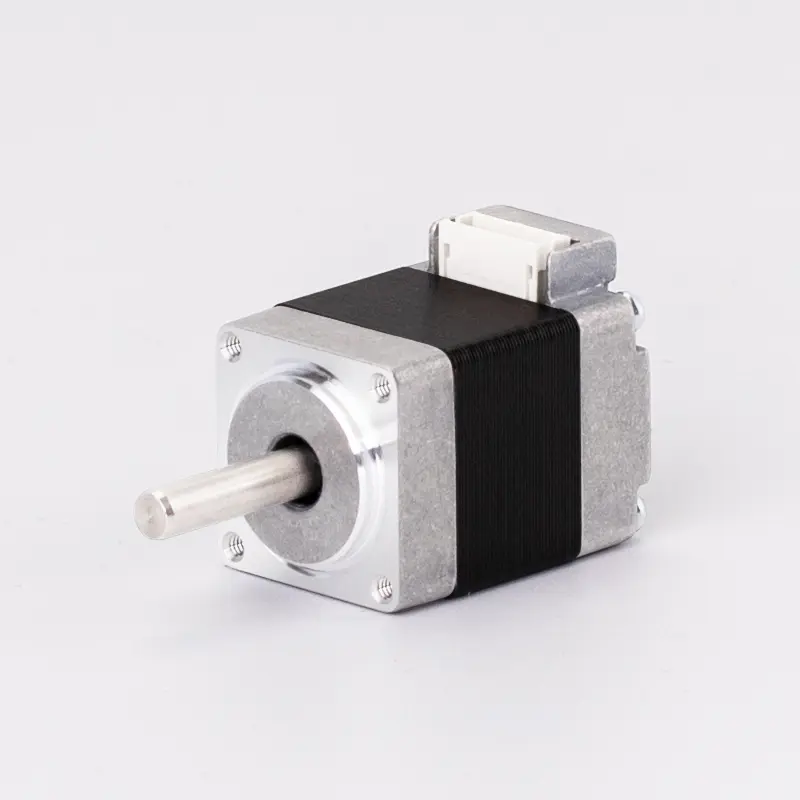

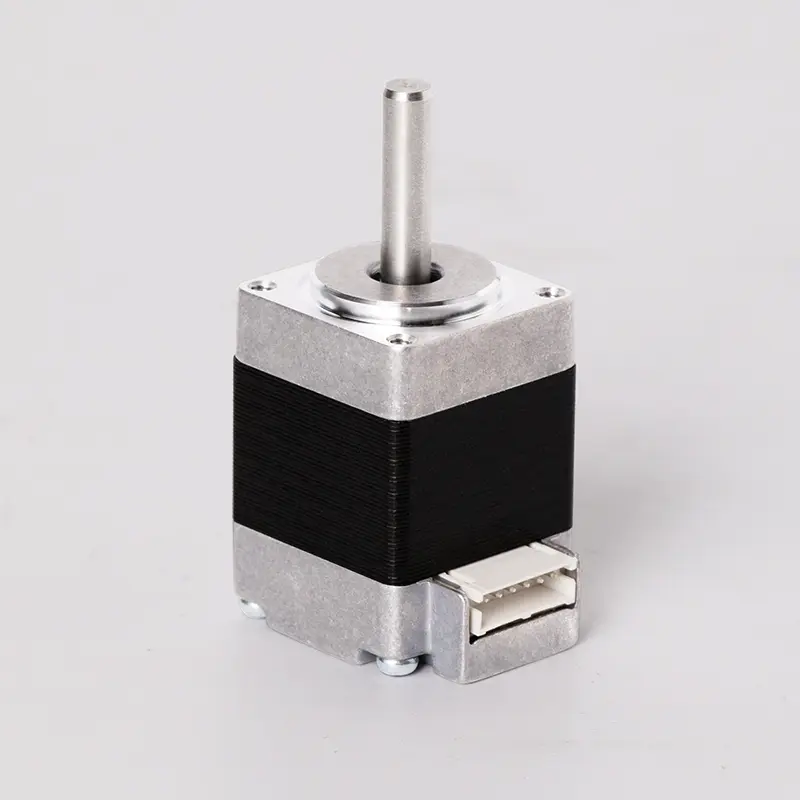

The Y07-20D1-2401 is a highly efficient 24V DC stepper motor, designed for precision applications requiring reliability and compact dimensions. With a stepping angle of 1.8° and a rated current of 0.6A, this two-phase motor delivers consistent performance while maintaining a low weight of only 50g. Its insulation resistance is rated at 100MΩ minimum (500V DC), ensuring durability and longevity in demanding environments. The motor features a holding torque of 0.016N.m, making it suitable for applications where minimal movement is required. With a braking torque of 10gf.cm and a moment of inertia of approximately 2g.cm², it provides excellent responsiveness and control. The winding insulation level is Class B, suitable for various industrial applications, ensuring reliability under operational stress.
