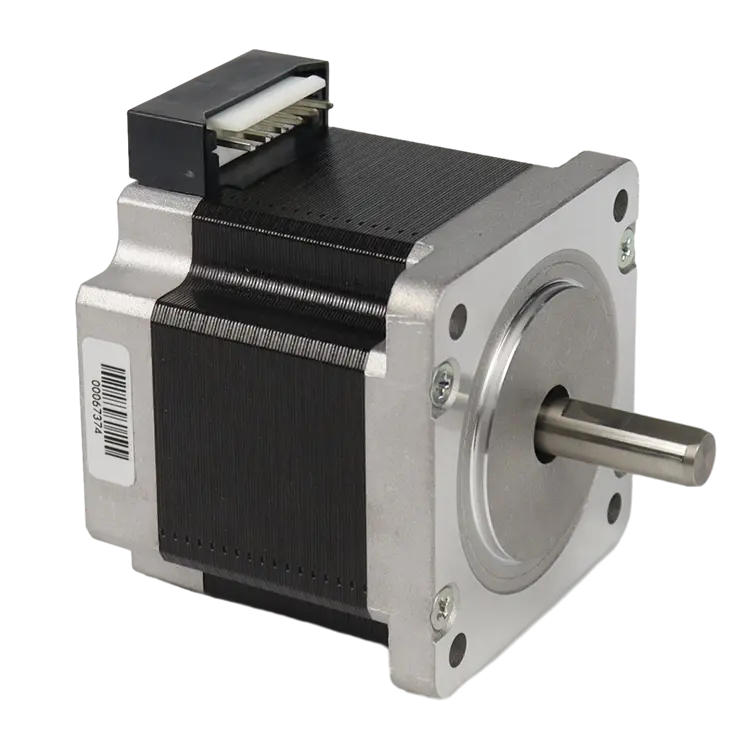

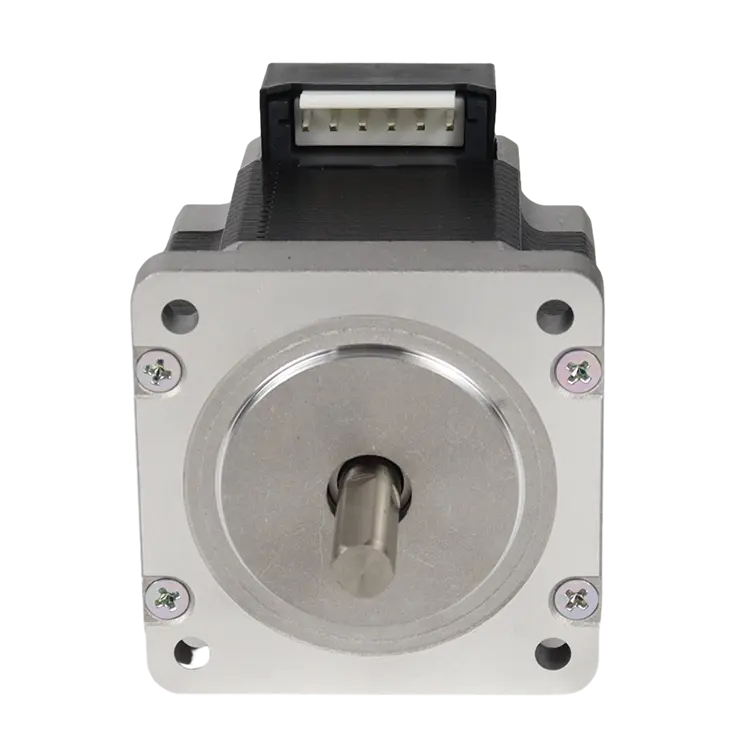

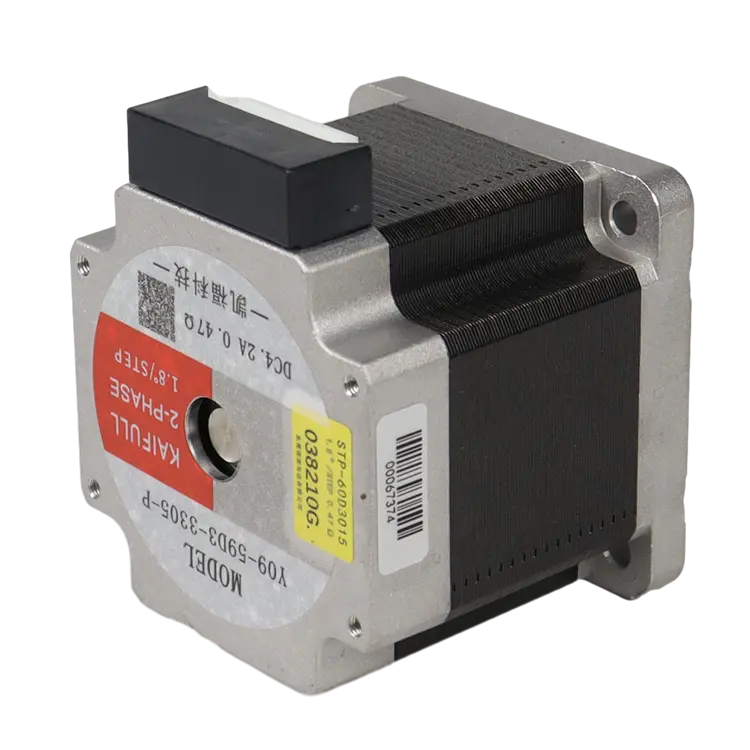

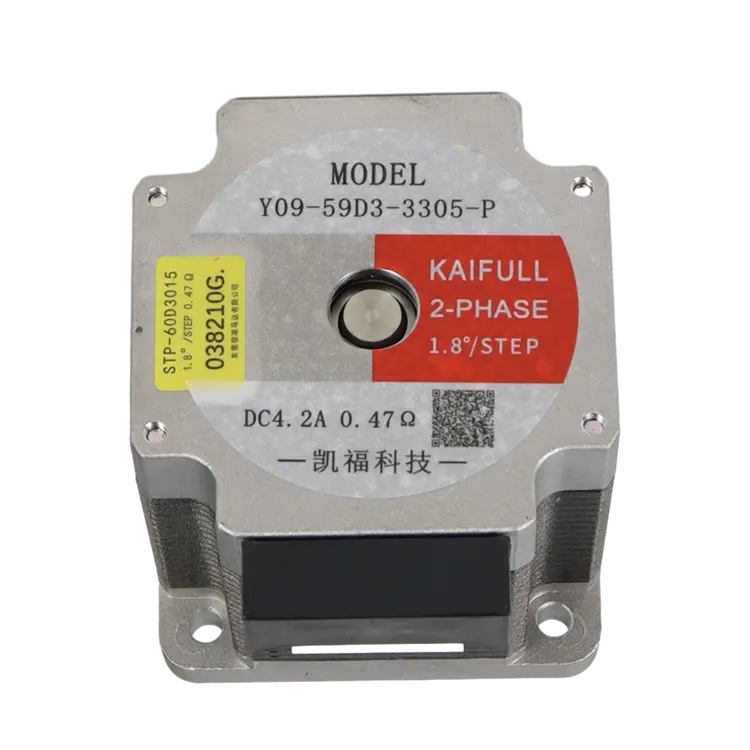

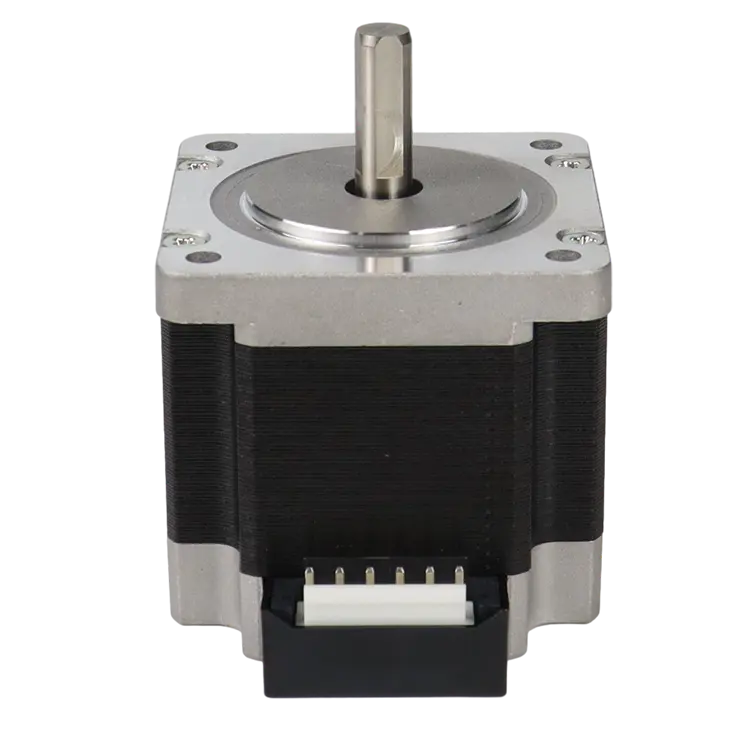

Compact 1.8° Two-Phase Stepper Motor - Y09-59D3-3305-P

The Y09-59D3-3305-P stepper motor is engineered for high precision and robust performance, making it ideal for demanding industrial and automation applications. With a stepping angle of 1.8°, it ensures highly accurate positioning and smooth motion control, perfect for use in CNC machines, robotics, and other precision motion systems.

Powered by a 24V DC supply, the motor operates with a rated current of 4.2A, delivering a holding torque of 1.4N.m, which provides the strength needed to manage heavy-duty applications. The motor's braking torque is rated at 700gf.cm, ensuring enhanced braking performance for quick, reliable stopping.

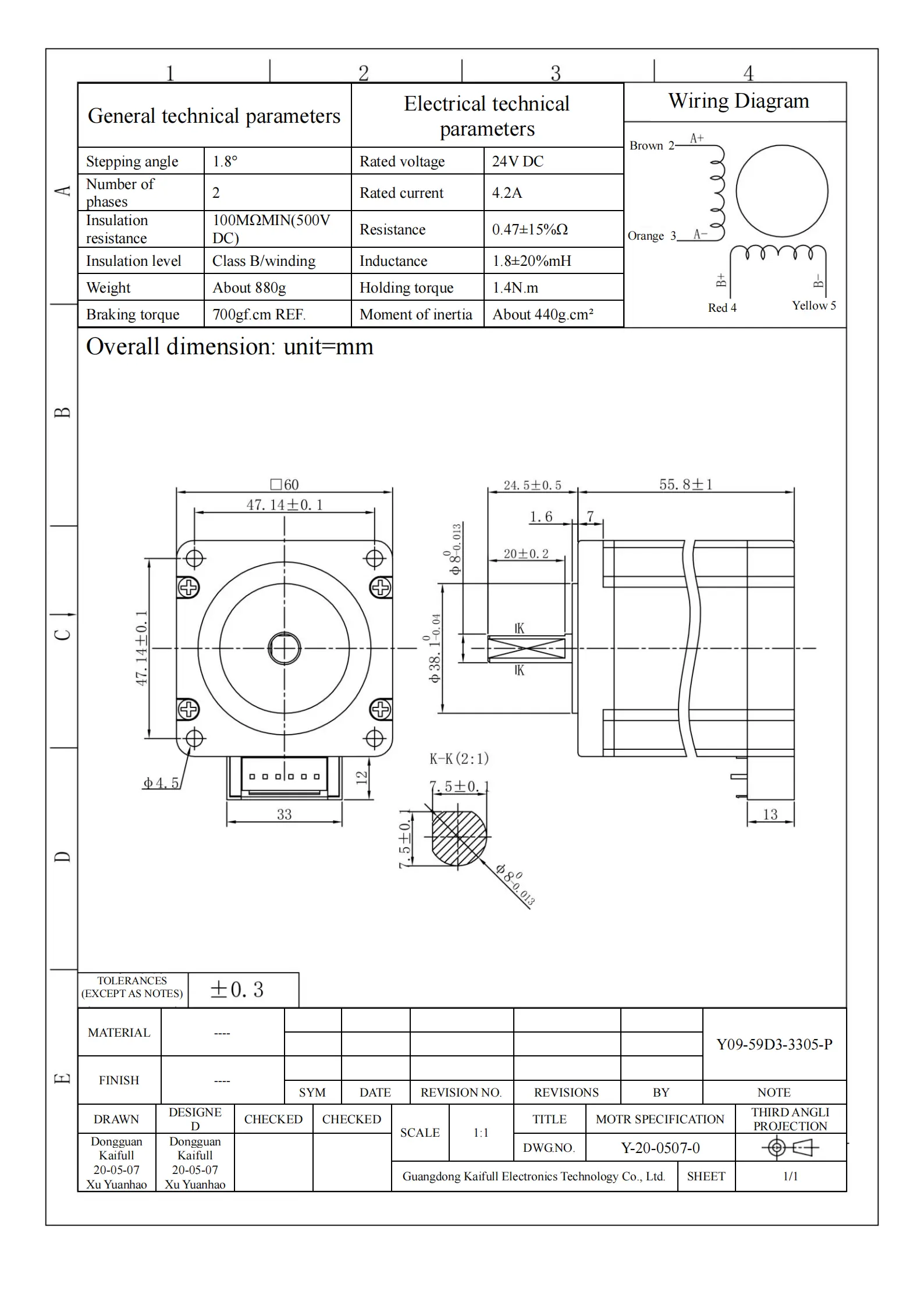

Electrical characteristics include a resistance of 0.47Ω ±15% and an inductance of 1.8mH ±20%, providing stable and consistent operation. With an insulation class of Class B, the motor is built for safety and long-term reliability under continuous operation.

Weighing approximately 880g, the Y09-59D3-3305-P is equipped with a moment of inertia of 440g.cm², allowing for steady and precise control during fast and repetitive movements.
