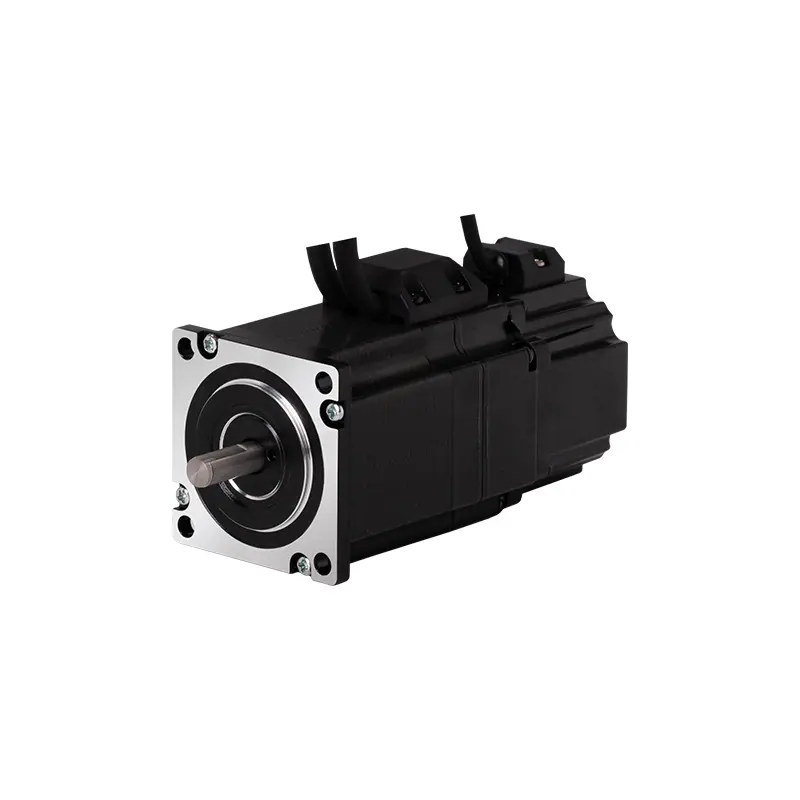

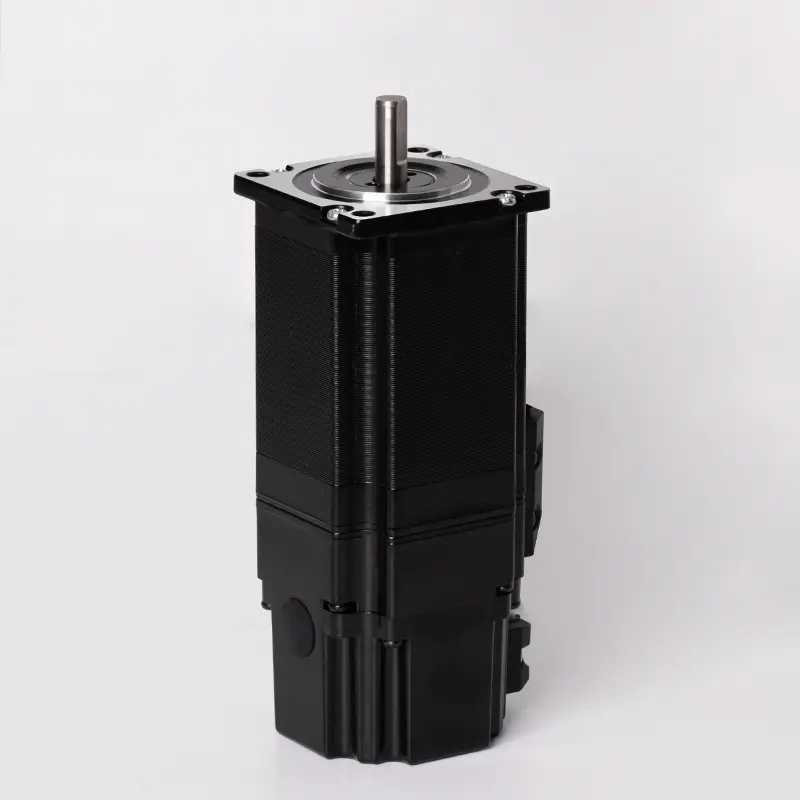

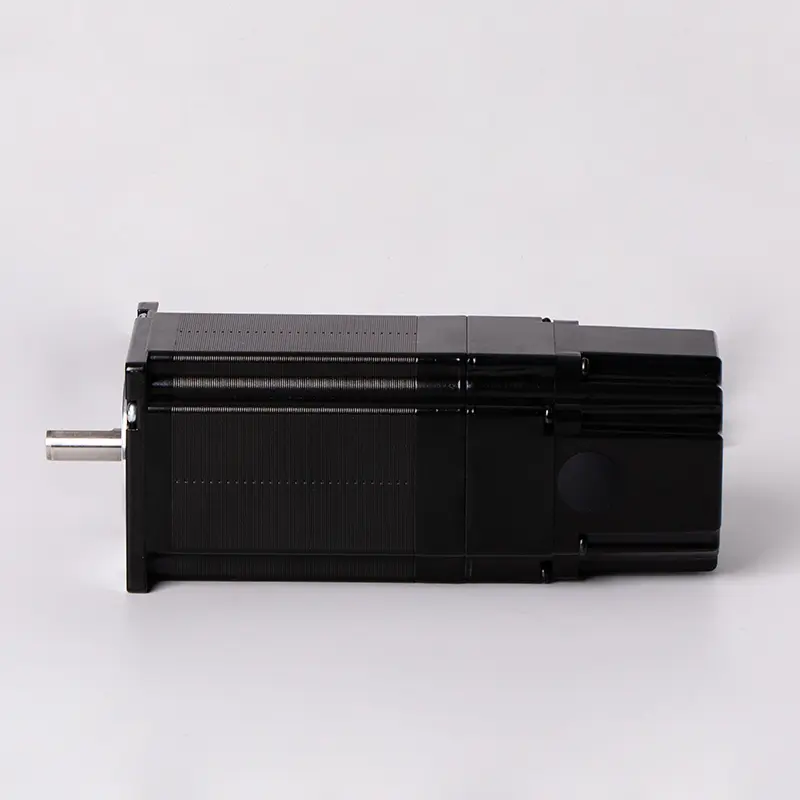

57K80-E1000M Closed-Loop Stepper Motor with 2.2Nm Torque

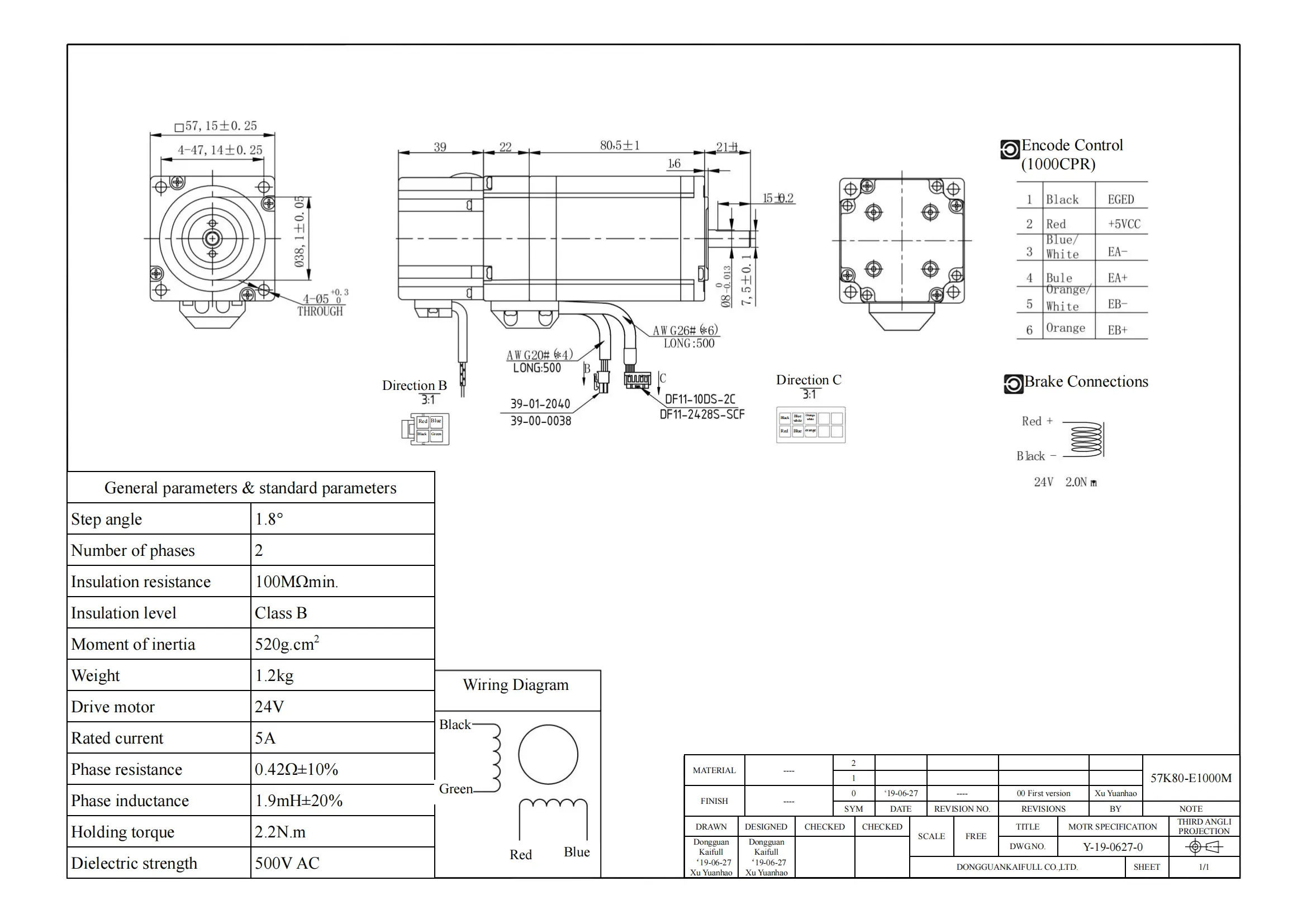

The 57K80-E1000M Closed-Loop Stepper Motor offers high-precision performance with a 1.8° step angle, optimized for industrial applications requiring reliable control. This two-phase motor delivers a strong holding torque of 2.2Nm, making it ideal for applications where stability and high load capacity are essential. Its insulation resistance is rated at a minimum of 100MΩ, with an insulation level of Class B for enhanced durability and safety. The motor is driven at 24V with a rated current of 5A, and it features a phase resistance of 0.42Ω±10% and a phase inductance of 1.9mH±20%, ensuring efficient and consistent performance. With a moment of inertia of 520g.cm² and weighing 1.2kg, this motor balances robust power with manageable weight. The motor’s dielectric strength of 500V AC enhances its resilience, making it a dependable component for precise motion control in industrial settings.
