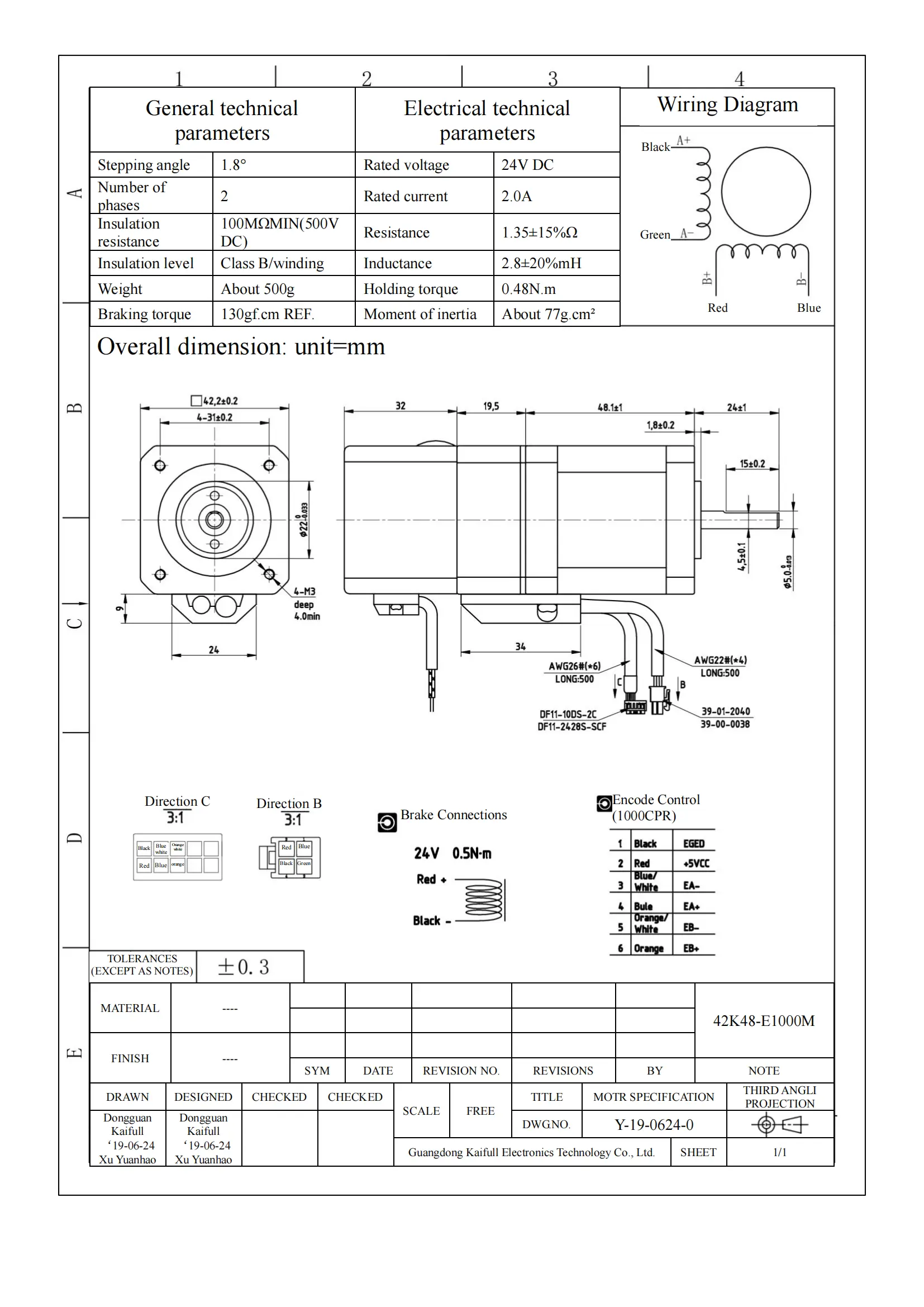

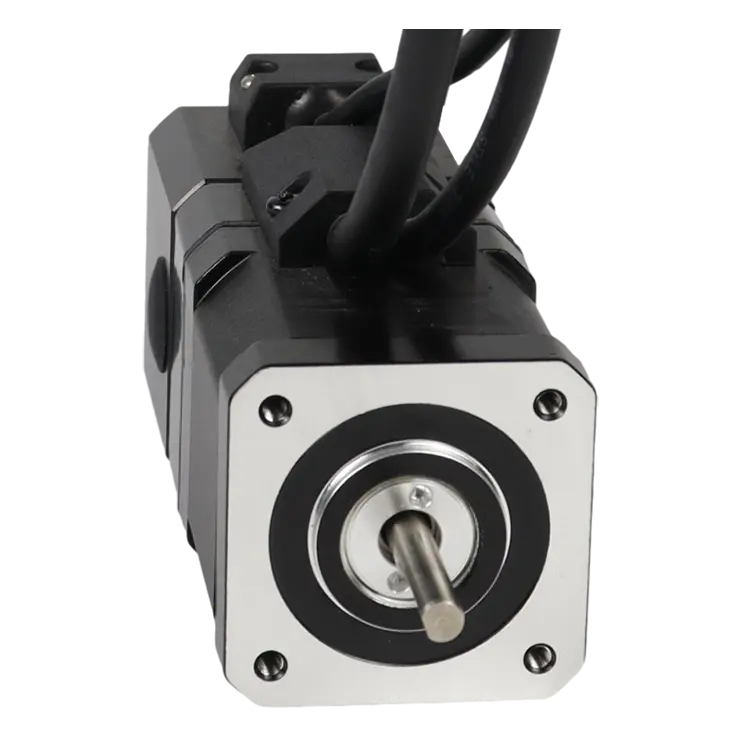

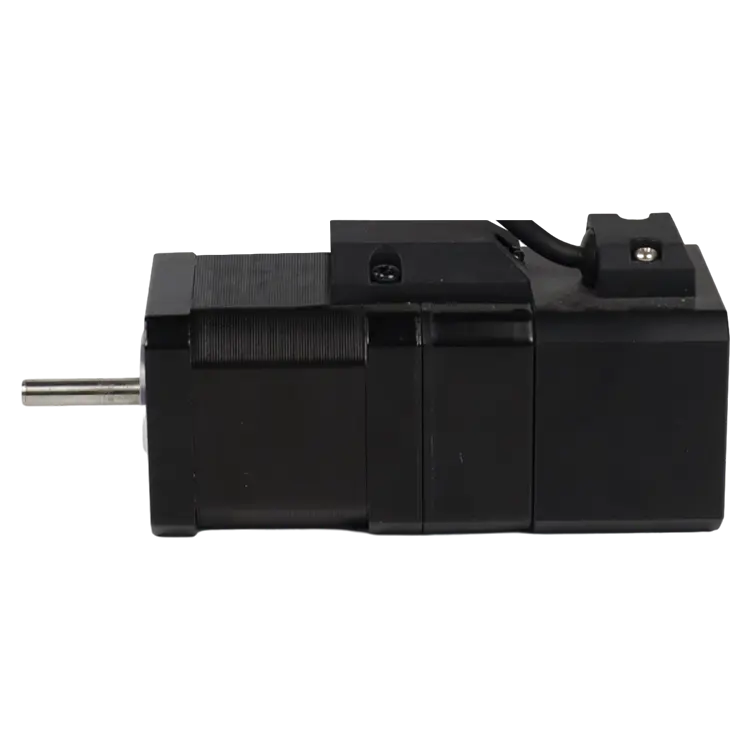

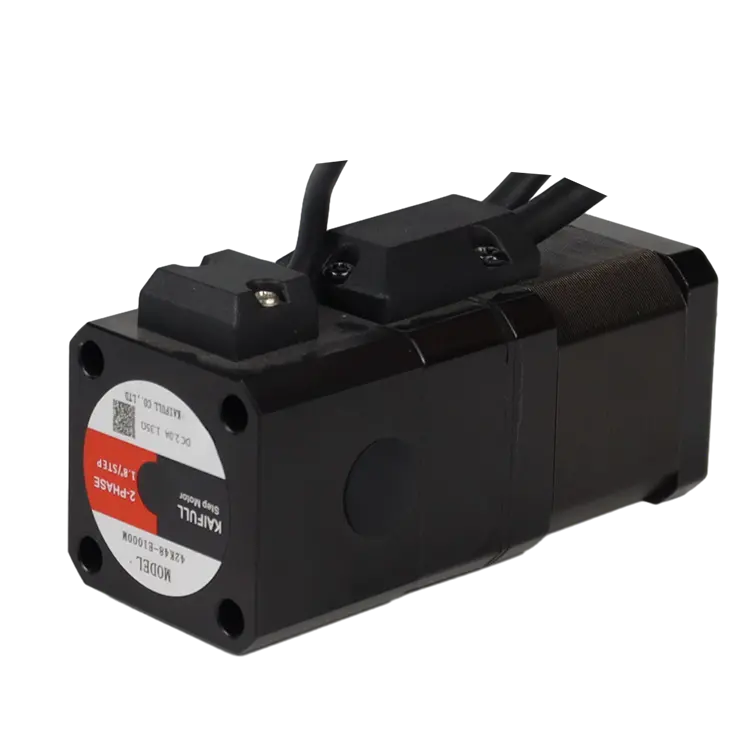

42K48-E1000M Precision Stepper Motor

The 42K48-E1000M stepper motor is designed for precision motion control, offering an optimal solution for a variety of applications requiring accurate positioning and reliability. With a step angle of 1.8°, this motor delivers precise movement and is particularly suited for tasks in robotics, CNC machinery, and automated systems.

Operating at a rated voltage of 24VDC, the 42K48-E1000M is powered by a rated current of 2.0A, ensuring sufficient torque for demanding applications. The motor's resistance is rated at 1.35Ω ±15%, which, combined with its phase inductance of 2.8mH ±20%, facilitates smooth operation and responsive control in various configurations.

Safety and reliability are paramount in the design of this motor. With an insulation resistance of 100MΩ minimum at 500V DC, it ensures that the motor operates safely under high-voltage conditions, reducing the risk of electrical faults. Its insulation level is classified as Class B, allowing it to perform effectively in temperatures up to 130°C, which is critical for environments with fluctuating thermal conditions.

The 42K48-E1000M boasts a holding torque of 0.48N·m, providing ample strength to maintain position under load. Additionally, with a braking torque of 130gf·cm, it ensures that the motor can quickly and reliably stop when needed. Its moment of inertia is approximately 77g·cm², allowing for efficient acceleration and deceleration, which is essential for dynamic applications.

Weighing around 500g, this motor is a robust yet lightweight option for integration into systems where weight considerations are important. Its compact design allows for seamless incorporation into small-scale equipment, making it versatile across various industrial and commercial applications.

In summary, the 42K48-E1000M stepper motor combines high precision, excellent torque characteristics, and robust safety features, making it an ideal choice for applications that demand reliable performance in compact configurations.
