Kaifull Profinet Series: Advanced Solutions for Industrial Automation

Why Choose Kaifull?

Supports RT/IRT communication for precise and fast response.

Compatible with 14–86 frame stepper motors and multiple encoders.

Supports redundancy topologies to ensure system stability.

USB-C interface for quick setup and diagnostics.

Installation dimensions：128×77.8×29.6 mm
Input power：24-48V DC
Current output：6Apk Max
Adaptable motor：Two-phase stepper motors of size 86 and below
Open-loop/closed-loop control：Compatible with open-loop or closed-loop control
Encoder interface：Supports up to 5000-line incremental encoder (20,000 pulses/turn)
Control method：PROFINET bus communication control
Digital I/O: 5 DI, 3 DO + brake

Recommended Operating Environment	Temperature	0-+55℃
	Humidity	0-90%RH or less
	Altitude	Below 1000 meters
	environment	No corrosive gas or dust
	environment	Do not directly contact with water and oil
Insulation Withstand Voltage	Grounding AC1.5KV, withstand voltage for 1 minute
Protection Level	IP20

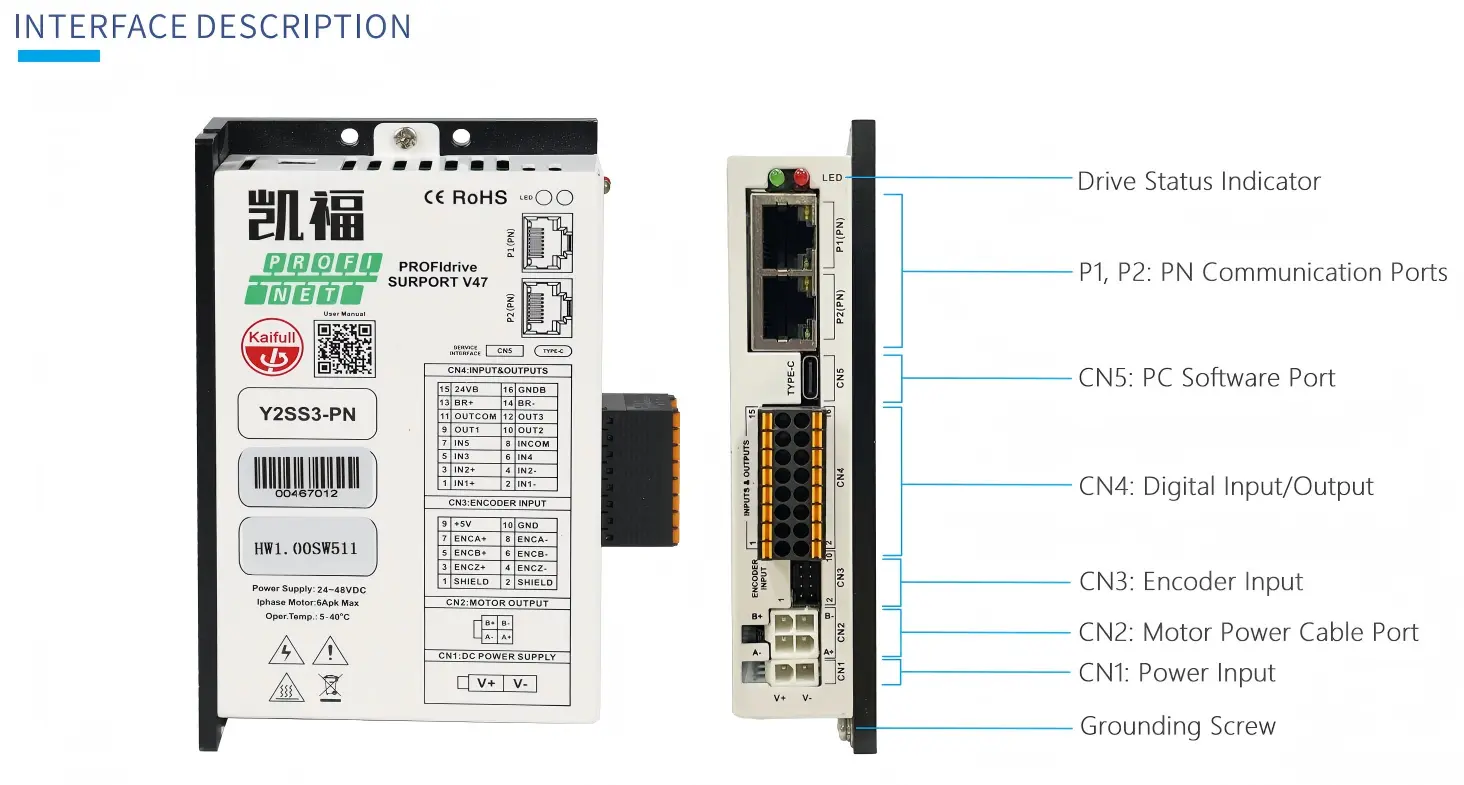

extracted-from-the-electronic-version-of-the-y2ss3-pn-product-catalogue_6-1

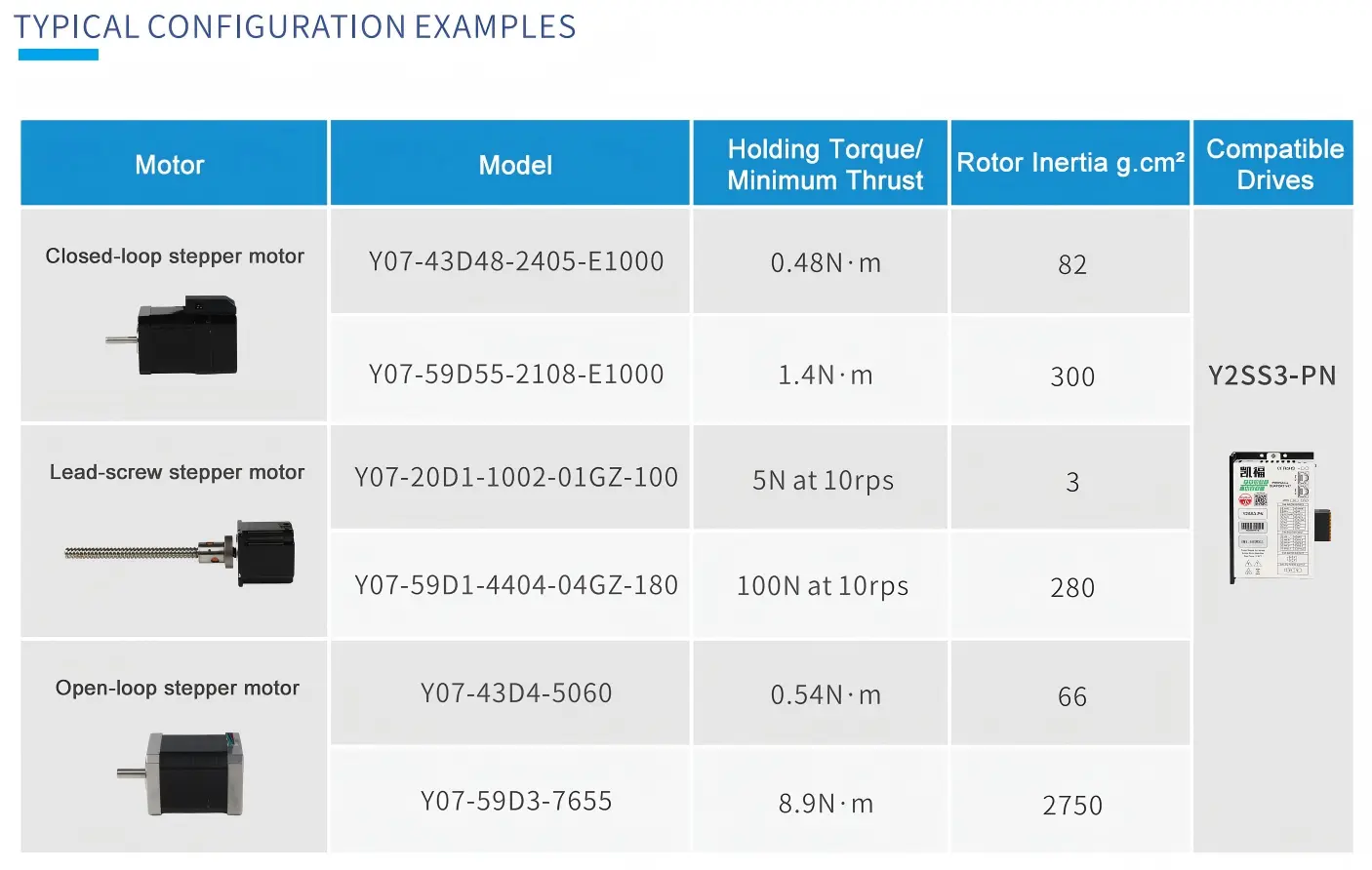

extracted-from-the-electronic-version-of-the-y2ss3-pn-product-catalogue_6-2
