🌐 Precision UVW / XXY Alignment Platforms for High-End Automation

2025-07-17

Product Overview:

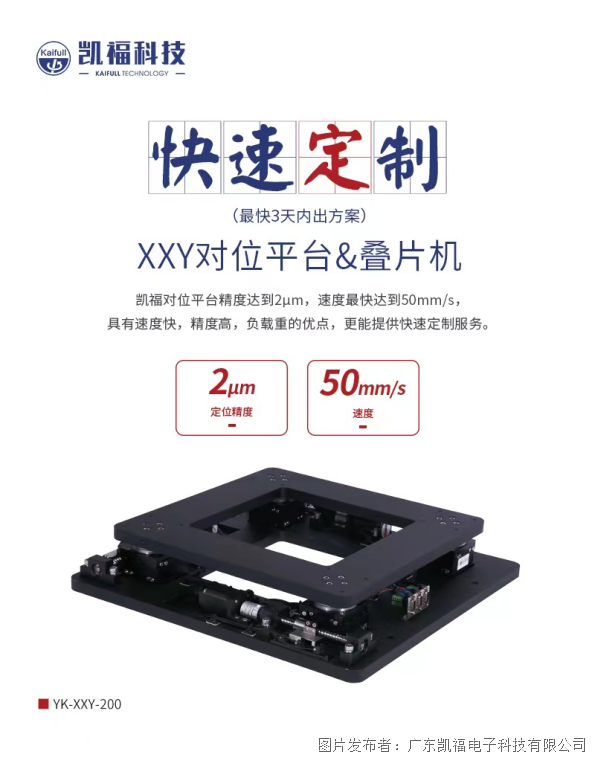

Kaifull precision alignment platforms—commonly referred to asUVW platforms or XXY Alignment Stages—are widely used in visual alignment and inspection systems. Our product range includes standard platform sizes of 150mm, 160mm, 180mm, 200mm, 250mm, 320mm, 350mm, 450mm, and 550mm, with custom sizes available on request.

🔍 Key Features:

✅ Ultra-Thin & Lightweight Design
Engineered with a modular mini-platform structure, the system eliminates the center base and adopts a low-profile frame while maintaining rigidity.

✅ Crossed Roller Bearings with Preload
Equipped with high-rigidity preloaded crossed-roller bearings, the platform ensures excellent precision and structural stiffness, essential for high-accuracy positioning.

✅ Built-in Lubrication System
Integrated lubrication within each motion rail ensures longer service life and consistent accuracy, even under high-duty cycle operations.

✅ Deep Cryogenic Treatment for Core Components
All structural parts undergo deep cryogenic treatment, minimizing deformation and significantly increasing the system’s lifespan and mechanical stability.

✅ 100% 3D Quality Inspection
Every unit is individually inspected in 3D to verify precision and ensure consistency in quality before delivery.

📐 Typical Applications:

Visual inspection systems
Electrical continuity testers
Precision dispensing and bonding
Laser scribing and exposure systems
Semiconductor alignment stations
5G fiber optics assembly equipment
Lithium battery production systems

📊 Specification Snapshot:

(Based on commonly selected models—contact us for detailed specs and CAD drawings.)

Item	Description
Structure	UVW / XXY modular thin-body frame
Travel Range	±90mm linear / ±6° rotary (typical)
Repeatability	±3μm
Bearing Type	Crossed roller, preloaded
Material Treatment	Ultra-deep cryogenic treated aluminum
Sizes Available	150mm to 550mm (customizable)
Integration Options	Vision camera mounts, I/O interface

🤝 One Platform, Multiple Industries

Kaifull Precision Alignment Platform System is an integrated solution combining Motion Control and visual alignment. It plays a critical role in industries such as:

Lithium battery equipment
Semiconductor manufacturing
5G optical communication systems

By significantly improving alignment accuracy and production throughput, it supports global manufacturers in achieving smarter, faster, and more reliable industrial automation.

📦 Customization & Support

Kaifull provides complete custom design, integration support, and after-sales service to meet your automation needs.

📩 Contact us today to discuss custom options or request a technical datasheet.
